SETRA温度传感器STC系列技术参数
Performance Parameters | |
Sensitive Element Types | Platinum Resistance Pt100 |
Nominal Value | 100Ω@0°C |
Accuracy Class | Sensor (RTD): Industrial Grade A (IEC 751); Industrial Grade A (EN 60751) |
Temperature Effects | |
Medium Temperature Range | -40°C to 200°C (depending on installation type) |
Physical Parameters | |
Housing — Wall / Duct Mount Type | ABS Polycarbonate |
Housing – Water Pipe Mounting Type | Aluminum Alloy |
Housing – Sensor Protection Tube | 304 Stainless Steel |
Housing – Mounting Flange | Nickel-plated Carbon Steel |
Installation Thread | G1/2" or 1/2" NPT Thread |
Environmental Parameters | |
Wall-Mounted Transmitter | -10°C ~ 70°C |
Duct-type and Pipe-type Transmitters | 0°C ~ 70°C |
RTD Output | -40°C ~ 85°C |
Storage Temperature | -40°C ~ 85°C |
Electrical Parameters | |
Output | Sensor (RTD) 3-Wire |
Output | Integrated Transmitter 4–20 mA (2-Wire) |
Insulation Resistance ≥ | ≥ 100 MΩ |
Load resistor | RL = (Supply Voltage – 12) / 0.02 Ω |
Power Supply | 12–28 VDC (Current Output) |
Power Consumption | Maximum 30 mA |
SETRA温度传感器STC系列介绍
SETRA温度传感器和变送器 (STC) 系列产品用来测量各种气体和液体的温度。STC使用高稳定的铂电阻作为敏感元件，结合多年的温度传感器设计制造经验，专门为HVAC行业设计的。为了延长产品的使用寿命， STC系列产品采用 IP65的防护等级，克服了现有产品由于潮湿导致过早失效的缺陷；同时，STC系列产品采用模块式设计，降低了客户的使用成本。STC系列产品具有墙面安装型，风管安装型，水管安装型等多种安装方式，以适应各种安装环境。STC系列产品提供多种电气输出方式，包括电阻输出和4-20mA电流输出，以满足不同客户的要求。
特性
• 高精度、高稳定性
• 极性反接保护
• 简易的现场安装
• IP65 的防潮设计
• 抗电磁辐射
• 阻燃
• 符合CE和RoHS标准
• 根据客户要求灵活配置
应用
• 空调送风，回风和排风温度测量
• 房间温度测量
• 制冷系统冷却水、冷冻水温度测量
• 热交换系统一次水、二次水温度测量
Setra’s STC series of temperature sensors and transmitters is designed to measure the temperature of various gases and liquids. Utilizing highly stable platinum resistance elements as their sensing components—and backed by years of experience in temperature sensor design and manufacturing—the STC series has been specifically engineered for the HVAC industry. To ensure a long service life, the STC series features an IP65 protection rating, effectively overcoming the common issue of premature failure caused by moisture exposure that plagues many existing products. Furthermore, the STC series employs a modular design, thereby reducing operational costs for customers. The series offers a variety of mounting options—including wall-mount, duct-mount, and pipe-mount configurations—to accommodate diverse installation environments. Additionally, the STC series provides multiple electrical output options, including resistance output and 4–20 mA current output, to meet the specific requirements of different customers.
Features
• High accuracy and stability
• Reverse polarity protection
• Easy field installation
• IP65 moisture-resistant design
• Electromagnetic radiation resistance
• Flame-retardant
• CE and RoHS compliant
• Flexible configuration based on customer requirements
Applications
• Measurement of supply, return, and exhaust air temperatures in HVAC systems
• Room temperature measurement
• Measurement of cooling water and chilled water temperatures in refrigeration systems
• Measurement of primary and secondary water temperatures in heat exchange systems

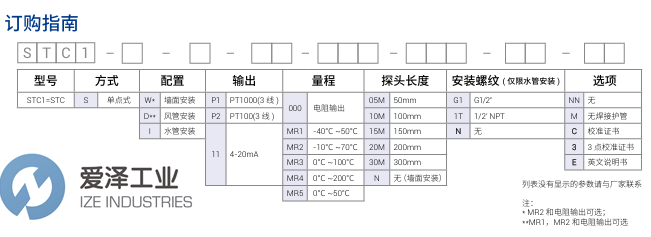

SETRA温度传感器STC系列选型
SETRA温度传感器STC系列其他常用型号：
SETRA STC1SD11MR230MN
SETRA STC1SIP200010MG1
SETRA STC1SI11MR330MG1
SETRA STC1SI11MR305MG1
SETRA STC1SD11MR320MN
SETRA STC1SI11MR305M1T
