SETRA温度传感器STC系列技术参数
Performance parameters | |
Sensitive element type | Platinum resistance Pt100 |
Nominal value | 100Ω@0℃ |
Accuracy class | |
Sensor (RTD) | Industrial Class A (IEC751) |
Wall Mount Transmitter | ±0.8%FS @23℃ |
Duct type | ±0.5%FS |
Water pipe type transmitter | ±0.5%FS |
long-term drift | The lower limit value and the range change is not more than 0.4% |
temperature effect | |
Medium temperature range | -40°C ~200°C (depending on installation type) |
physical parameters | |
Shell-Wall/Duct Mount Type | ABS polycarbonate |
Shell-Water Pipe Mounting Type | Aluminum alloy |
Housing-sensor protection tube | 304 stainless steel |
Housing - mounting flange. | Carbon steel nickel plated |
mounting thread | G1/2" or 1/2" NPT thread |
Environmental parameters | |
Wall Mount Transmitter | -10°C ~ 70°C |
Air Duct Type, Water Duct Type Transmitter | 0°C ~ 70°C |
RTD output | -40°C ~ 85°C |
storage temperature | -40°C ~ 85°C |
Electrical parameters | |
output | Transducer (RTD) 3-wire |
output | Integrated transmitter 4-20mA (2 wires) |
Insulation resistance≥ | ≥100MR |
Load Resistance | RL=(supply voltage-12)/0.02Q |
Power supply | 12~28VDC (current output) |
Power consumption | 30mA max |
SETRA温度传感器STC系列介绍
出众的性能：采用高质量的工业A 级Pt100 和Pt1000 铂电阻敏感元件，结合先进的制造工艺，不仅保证产品具有出众的长期稳定性；同时保证产品具有很高的测量精度；
使用和维护成本低：提供多种安装方式，便于在各种场合安装，并提供相应的安装附件，缩短安装时间，降低安装成本；同时使用了可拆卸设计，降低了客户的维护成本；
坚固耐用：使用铝合金壳体，防护等级为IP65，不仅提高了产品的抗干扰能力，在保证产品结实耐用的同时，克服了潮湿引起的传感器过早失效，从而延长使用寿命；
应用范围广：产品提供多种电气输出以适应各种用户的要求；同时可根据客户的实际要求提供个性化产品。
Outstanding performance: Using high-quality industrial A-grade Pt100 and Pt1000 platinum resistance sensitive elements, combined with advanced manufacturing technology, not only ensures the product has outstanding long-term stability, but also ensures that the product has high measurement accuracy;
Low cost of use and maintenance: Provide a variety of installation methods to facilitate installation in various occasions, and provide corresponding installation accessories to shorten installation time and reduce installation costs; at the same time, detachable design is used to reduce maintenance costs for customers;
Sturdy and durable: The use of aluminum alloy shell, the protection level is IP65, not only improves the anti-interference ability of the product, but also overcomes the premature failure of the sensor caused by moisture while ensuring the product is strong and durable, thereby prolonging the service life;
Wide range of applications: The product provides a variety of electrical outputs to meet the requirements of various users; at the same time, it can provide personalized products according to the actual requirements of customers.
SETRA温度传感器STC系列技术尺寸

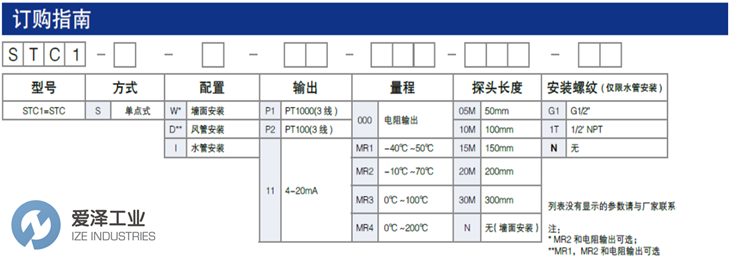

SETRA温度传感器STC系列系列选型
SETRA温度传感器STC系列其他常用型号：
SETRA STC1 SIP200010MG1
SETRA STC1SI1 1 MR330MG1
SETRA STC1-S-I-11-MR3-05M-G1
SETRA STC1-S-D-1 1-MR3-20M-N
SETRA STC1SD11MR320MN
SETRA Temperature Sensor NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于SETRA温度传感器STC1SD11MR320MN的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for SETRA products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
SETRA温度传感器STC系列STC1SD11MR320MN技术参数及选型
