ILC润滑泵CME系列技术参数
Technical data | |
Reservoir capacity | 2l - 3l |
Capacities measured | 100cc/1' 50Hz |
Outlet connections | 2 BSP 1/4” seats (standard supplied with 1 left-hand lock cap) |
Electrical connections | 1 cable gland for power supply |
Filling | Cap with 200 μ load filter |
Pressure gauge | 0 - 60 bar |
Operating pressure | 24-30 bar |
Lubricants | Oils 50 to 1000 cSt |
Operating temperature | 0°C - 50°C |
Protection rating | IP-54 |
Weight (reservoir empty) | 3.5 Kg (2l) |
ILC润滑泵CME系列介绍
CME 电动泵专为配备有容积计量阀或气油混合器的单线润滑系统而开发。
该装置由齿轮泵、电动机、低液位开关、电子控制卡（可根据要求提供）、绿色LED指示灯（指示电源开启）、黄色LED指示灯（指示泵工作）、压力表、中间润滑按钮和压力开关组成。压力开关也可安装在主油路末端。
塑料盖可保护电子元件免受污垢或灰尘等环境因素的影响。透明的耐冲击储液器容量为 2 升或 3 升。
一组提供减压和旁通功能的阀门与齿轮泵相连。
可使用的润滑剂为粘度范围在 50 至 1000 cSt 之间的润滑油 (CME-O) 或 NLGI 稠度为 000-00 的软脂 (CME-G)。两种型号配备不同的液位控制传感器。
CME electric pumps have been developed for single line lubrication systems fitted with volumetric metering valves or air-oil mixers.
The unit consists of a gear pump, an electric motor, a low level switch, an electronic control card (upon request), a green LED (indicates power ON), a yellow LED (indicates pump working), a pressure gauge, a push button for intermediate lubrication and a pressure switch. Alternatively, the pressure switch can also be put at the end of the main line.
The plastic cover protects the electrical components from environmental conditions like dirt or dust. The transparent impact-resistant reservoir has a capacity of 2 or 3 litres.
A set of valves which provides the decompression and bypass functions is connected to the gear pump.
The lubricants that can be used are oil with a viscosity range between 50 and 1000 cSt (CME-O) or soft grease with a NLGI consistency of 000-00 (CME-G). The two models have different sensors fitted for level control.

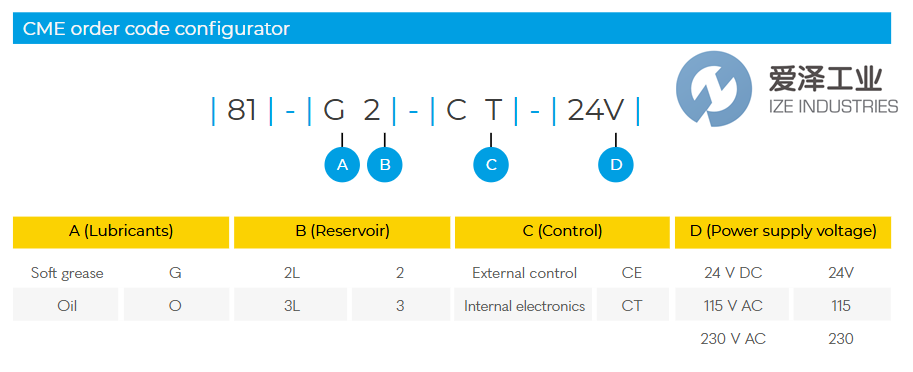

ILC润滑泵CME系列选型
ILC润滑泵CME系列其他常用型号：
ILC 81.Z03361.001
ILC 81-G2-CE-115
ILC 81-G2-CE-230
ILC 81-G2-CE-24V
ILC 81-G2-CT-115
ILC 81-G2-CT-230
ILC 81-G2-CT-24V
ILC 81-G3-CE-24V
ILC 81-O2-CE-115
ILC 81-O2-CT-230
ILC 81-O3-CE-24V
ILC 81-O3-CE-115
ILC 81-O2-CE-24V
ILC 81-G3-CT-230
ILC 81-O2-CE-230
ILC pump NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向先进制造工业提供高端制造技术和设备。代理经营世界先进的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于ILC润滑泵81.Z03361.001的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for ILC products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.ize-industries.com.
