规格描述

PERMA PURE干燥管MD系列技术参数

Specifications
Nafion™ Tubing Outer Diameter Options	0.050″ (MD-050), 0.070″ (MD-070), 0.110″ (MD-110)
Max. Flow Rate	0.2 lpm (MD-050), 4 lpm (MD-070), 4 lpm (MD-110)
Housing Materials Available	Polypropylene, Fluorocarbon, or Stainless Steel
Max. Operating Temperatures	80 °C for polypropylene housing, 100 °C for fluorocarbon or stainless steel housing
Sample Gas Port – End Fitting Options	Port 1/16″ Compression (MD-050, Stainless Steel Only) Port 1/8″ Compression (All models) Port 1/4″ Compression (MD-070, MD-110)
Purge Gas Port – End Fitting Size	Port 1/8″ Compression (MD-050) Port 1/4” Compression (MD-070, MD-110)
Purge Gas Recommendations	Purge gas must be drier than sample gas Purge gas can be instrument quality air (max -40 °C dew point) or nitrogen Purge gas should flow at 2 or 3 times the sample rate Alternate methods to using a purge gas are possible, such as recycling the dry sample gas, or pulling vacuum through the purge gas flow path. See website for more information.
Coiled Configurations	Certain models are shipped coiled based on length. See page 4 for nominal diameters. Contact us for custom coiled solutions.

产品介绍

爱泽工业（ize-industries）并不是本网站所列所有产品的授权代理商或经销商。本网站使用的所有产品名称，商标，品牌等均属于各自品牌厂家所有。本网站在产品或图片描述中，出现具有这些名称，商标，品牌等信息的产品仅用于识别目的，并非旨在表明任何与持有者的从属及授权关系。

PERMA PURE干燥管MD系列介绍

Perma Pure气体干燥器采用 Nafion™管，可选择性地去除气体样品中的水分。这种对水蒸气的选择性使干燥器比其他气体干燥解决方案能够去除更多的水分，同时保留气体样品中的分析物。

单管干燥器系列（MD 系列）气体干燥器包含一根 Nafion™管。MD 系列可将气体干燥至低至 -40 °C 露点的湿度水平，是流量高达 4 升/分钟的应用的理想选择。

Powered by Nafion™ tubing, Perma Pure gas dryers selectively remove water from a gas sample. This selectivity for water vapor allows our dryers to remove more moisture than other gas drying solutions, while keeping analytes in the gas sample.

Monotube Dryer Series (MD-Series) gas dryers contain a single Nafion™ tube. The MD-Series can dry a gas to humidity levels as low as –40 °C dew point and is ideal for applications with flow rates up to 4 lpm.

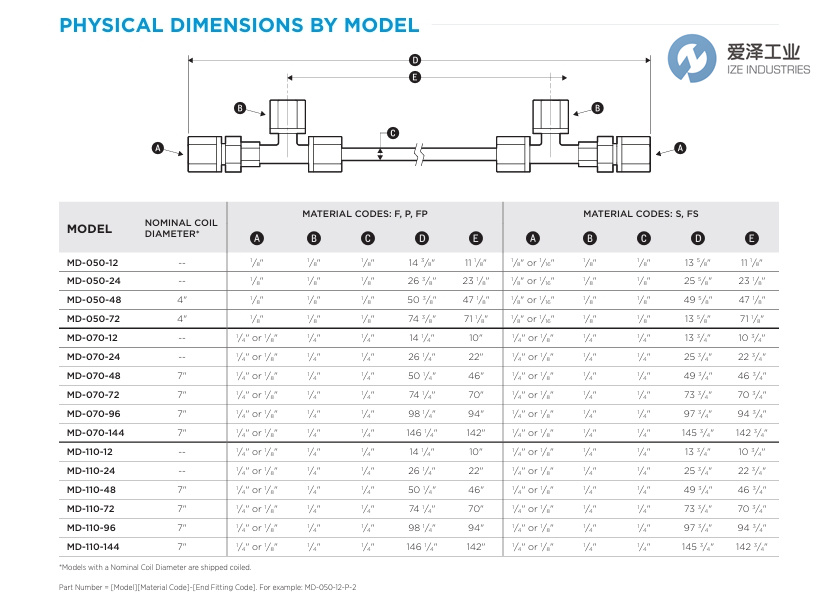

PERMA PURE干燥管MD系列规格尺寸

PERMA PURE干燥器MD-050-48S-1爱泽工业 izeindustries.jpg

PERMA PURE干燥管MD系列其他常用型号：

PERMA PURE MD-050-12

PERMA PURE MD-050-24

PERMA PURE MD-050-48

PERMA PURE MD-050-72

PERMA PURE MD-070-12

PERMA PURE MD-070-24

PERMA PURE MD-070-48

PERMA PURE MD-070-72

PERMA PURE MD-070-96

PERMA PURE MD-070-144

PERMA PURE MD-050-48S-1

PERMA PURE Desiccator NEW + ORIGINAL+ ONE YEAR WARRANTY

爱泽工业集产品开发、设计、制造、销售、服务于一体，代理经营世界先进的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。

如果有任何关于PERMA PURE干燥管MD-050-48S-1的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。

If you have any question for PERMA PURE products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.ize-industries.com.

PERMA PURE干燥管MD系列MD-050-48S-1技术参数及介绍
