WEH连接器TW110系列技术参数

WEH连接器TW110系列介绍

WEH TW110快速接头专为汽车空调设备（例如使用 R134A 制冷剂）的制冷剂加注和抽空而设计，符合SAE J639 标准。该接头的最大工作压力为35 bar，并完全采用不锈钢制造。因此，该接头非常适合连续运行。

TW110快速接头集成了一个截止阀，可最大限度地减少污染性制冷剂的泄漏。由于滑动套筒设计，操作便捷，无需费力手动拧紧，从而避免了重复性劳损 (RSI)。因此，工作流程显著简化，并可节省大量时间和成本。

WEH TW110 配备HNBR前端密封件。可根据要求提供其他密封材料。

应用

用于在生产过程中根据 SAE J639 标准对汽车空调设备进行制冷剂加注和抽空的快速接头。

特点

● 秒速连接

● 无需手动拧紧

● WEH爪式锁定机构

● 降低连接时间和成本

● 采用优质材料

The WEH TW110 Quick connector is specifically designed for filling and evacuating refrigerants,as for example R134A, of automotive air conditioning equipment acc. to SAE J639.The service connector is rated for a max. operating pressure of 35 bar and is completely made of stainless steel. Therefore, the connector is ideally suited for continuous operation.

The TW110 quick connector has an integrated shut-off valve reducing the release of polluting refrigerants to a minimum. Thanks to the high operating convenience offered by the sliding sleeve, tedious hand tightening causing RSl is a thing of the past. Thus workflows are significantly simplified and considerable time and cost savings are achieved.

The WEH TW110 is equipped with a HNBR front seal. Other sealing materials on request.

Application

Quick connector for filling and evacuating refrigerants of automotive air conditioning equipment acc. to SAE J639 during production

Features

● Connection in seconds

● No hand tightening required

● WEH Jaw locking mechanism

● Reduces connection times and costs

● High-grade materials

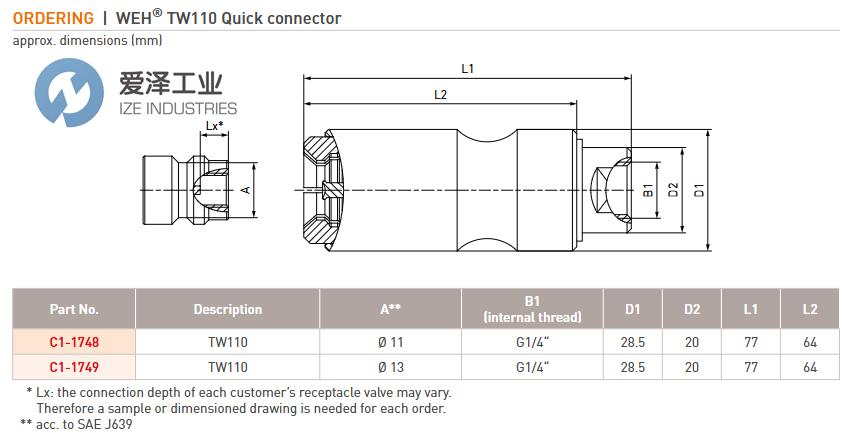

WEH连接器TW110系列规格尺寸
