RINCON POWER电池开关HVBD系列技术参数
SPECIFICATIONS | |
Contact Arrangement | Form X, SPST |
Operating Voltage | Up to1,000VDC (no switching under load) |
Dielectric Withstand Voltage | 5,000VDC, 1 minute |
Continuous Current | 300A, 400A, or 600A continuous |
Make and Break2 (400A @ 24VDC) | 5,000 cycles |
Voltage Drop (Max at nominal load) | 40mV |
Min Insulation Resistance | 100Mohm |
Shock, 1/2 Sine, 11ms | 25G |
Vibration, Sinusoidal (10-500Hz Peak) | 4G |
Vibration, Sinusoidal (500Hz-2000Hz Peak) | 20G |
Operating Temperature3 | -55˚C to 85˚C |
Ingress Protection | Exceeds IP69, (Hermetically sealed) |
Weight | 425g |
Case Material | PA GF |
Switch Lever Material | PA GF |
Mounting | 100mm | C:C, 2X M8 |
Mounting Position | Any |
Auxiliary Contact (SPDT)– Continuous Current | 3A |
RINCON POWER电池开关HVBD系列介绍
HVBD 是电池断开技术的新水平
• 坚固的金属陶瓷气密密封
• 行业优质的介质耐压
• 高温性能
• 超低接触电阻在整个生命周期
• 为恶劣环境做好准备
• 专为符合 OSHA 标准的上锁/挂牌 (LOTO) 而设计
• GIGAVAC1 HBD 系列电池断路开关的直接替代品
• 可选的集成辅助触点
HVBD is the next level in battery disconnect technology
• Robust metal-ceramic hermetic seal
• Industry leading dielectric withstand voltage
• High temperature performance
• Ultra-low contact resistance over life
• Ready for harsh environments
• Designed for OSHA compliant lockout/tagout (LOTO)
• Drop-in replacement for GIGAVAC1 HBD Series battery disconnect switches
• Optional integrated auxiliary contacts

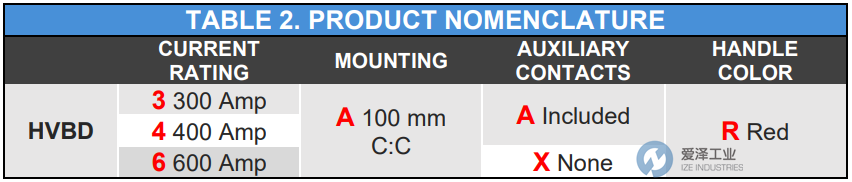

RINCON POWER电池开关HVBD系列选型
RINCON POWER电池开关HVBD系列其他常用型号：
RINCON POWER HVBD4AXR
RINCON POWER HVBD4AAR
RINCON POWER HVBD6AAR
RINCON POWER HVBD6AXR
RINCON POWER HVBD3AAR
RINCON POWER HVBD3AXR
RINCON POWER Battery Disconnect NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于RINCON POWER电池开关HVBD4AXR的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for RINCON POWER products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
RINCON POWER电池开关HVBD系列HVBD4AXR技术参数及选型
