TPL VISION背光源CMBACK-O-2020-WHI-M1技术参数

TPL VISION背光源CMBACK +系列介绍

半准直 CMBACK+是 一款 功能强大且漫射性极佳的背光源，专用于多种机器视觉应用。它采用 高功率 LED 和专用镜头，可产生极强的照明，帮助相机清晰地观察工件形状。

CMBACK+ 还配备了滤光片，可消除非垂直光线（与照明表面垂直轴成 30° 以上的夹角）。这种准直有助于获得高对比度的图像。因此，该产品推荐用于圆形或厚工件的边缘检测，以及透明工件（玻璃或塑料材质）上的标记或材料缺陷的检测。

CMBACK+ 配备频闪输入和电位器，可以改变照明功率。OVERDRIVE版本还可以提供更高的照明功率。无论是连续模式 还是 频闪模式，它都具有 较短的上升和下降时间：25 μs 和 15 μs。由于其 薄边缘，半准直的 CMBACK+均匀地照亮了 整个分析表面。此外， 连接器 可以放置 在灯的任何一侧， 从而可以轻松地将其安装在任何类型的传送带上。在连接器的底部，2 个LED显示产品是否通电以及频闪模式是否打开。CMBACK+ 有各种波长和 各种尺寸可供选择 。

The semi-collimated CMBACK+ is a powerful and very diffuse backlight, dedicated to many machine vision applications. With high powerful LED and specific lenses, it creates a very intense illumination, that helps cameras to clearly see workpieces shapes.

The CMBACK+ is also manufactured with filters, which eliminate the non-perpendicular light (>30° compared to the vertical axis of the lighting surface). This collimation helps to get highly contrasted images. This is why this product is recommended for the edge detection of round or thick workpieces, and also for the detection of markings or material defects on transparent workpieces (made of glass or plastic).

The CMBACK + is equipped with a strobe entry and a potentiometer, which enables to vary the lighting power. The OVERDRIVE version can also offer a far higher lighting power. Either in continuous or in strobe mode, it has short rising and falling times: 25 μs and 15 μs. Thanks to its thin edges, the semi-collimated CMBACK+ uniformly illuminates the whole surface analysed. Moreover, the connector can be placed on any side of the light, making it easy to set it up on any kind of conveyor belts. In the base of the connector, 2 LED show if the product is powered and if the strobe mode is on. The CMBACK+ is available in various wavelengths and also in various dimensions.

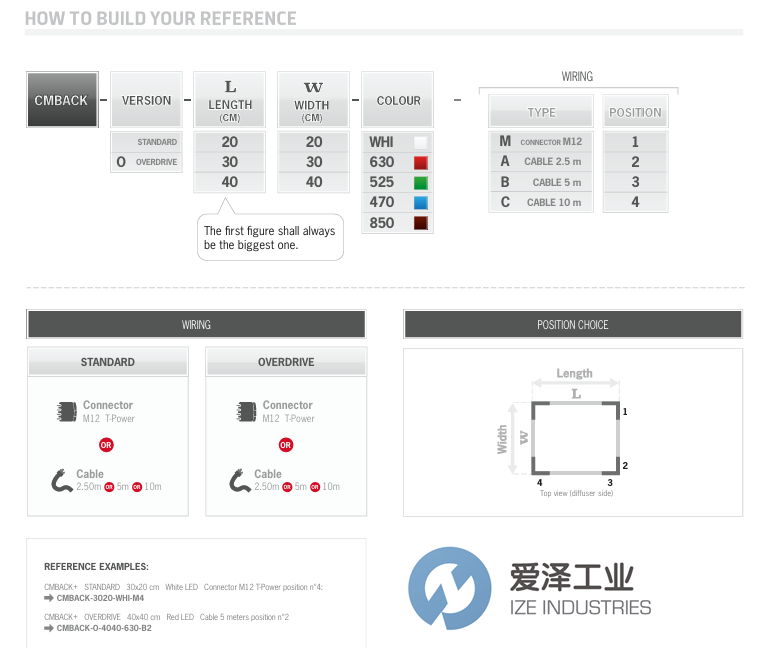

TPL VISION背光源CMBACK +系列选型

TPL VISION背光源CMBACK +系列其他常用型号：

TPL VISION CMBACK-O-2020-WHI-M1

TPL VISION CMBACK-O-2020-WHI-A2

TPL VISION CMBACK-O-2020-630-B3

TPL VISION CMBACK-O-2030-525-C4

TPL VISION CMBACK-E-3030-630-M1

TPL VISION CMBACK-E-3040-470-A2

TPL VISION CMBACK-E 4040-850-B3

TPL VISION CMBACK-E-4020-850-C4
