KROM SCHRODER调压阀VGBF系列技术参数
Gas types: natural gas, town gas, LPG (gaseous) and biologically produced methane (max. 0.02 %-byvol. H2S), VGBF..V also for air. The medium must be dry in all temperature conditions and must not contain condensate. |
Inlet pressure range: up to 500 mbar (7.25 psig), 1 bar (14.5 psig) and 4 bar (58 psig). |
Outlet pressure ranges: |
Ambient temperature: |
No condensation permitted. |
Long-term use in the upper ambient temperature range accelerates the ageing of the elastomer materials and reduces the service life. |
Storage temperature: |
Valve housing: aluminium,valve seat and stem: aluminium. |
Wetted diaphragms: |
Valve disc seal: |
Internal thread: Rp to ISO 7-1, NPT to ANSI/ASME. |
Flanged connection: PN 16 pursuant to ISO 7005, ANSI flange pursuant to ASA. |
KROM SCHRODER调压阀VGBF系列介绍
带有入口压力补偿膜片和零位关断的弹簧加载式气压调节器 VGBF 用于保持设定的出口压力恒定，尽管气体流量和气体管道中的入口压力发生变化。 额外的安全膜片，除根据 NFPA 86 进行安装外，不需要呼吸管。
用于钢铁、玻璃和陶瓷行业以及商业热能生产的所有部门的进气部分，例如包装、造纸和食品行业。
The spring-loaded gas pressure regulator VGBF with inlet pressure compensation diaphragm and zero shutoff serves to maintain the set outlet pressure constant despite changing gas flow rates and inlet pressures in gas pipelines. Thanks to an additional safety diaphragm, no breather line is required, except for installation pursuant to NFPA 86.
For use in gas inlet sections in all sectors of the iron, steel, glass and ceramics industries as well as in commercial heat generation, such as the packaging, paper and foodstuffs industries.

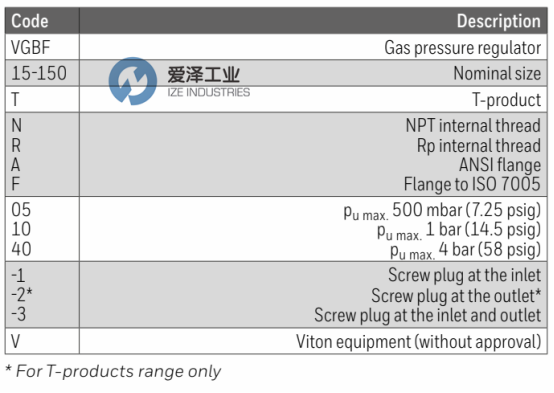

KROM SCHRODER调压阀VGBF系列选型
KROM SCHRODER调压阀VGBF系列其他常用型号：
KROM SCHRODER VGBF40F10-3
KROM SCHRODER VGBF50F10-3
KROM SCHRODER VGBF80F10-3
KROM SCHRODER VGBF100F10-3
KROM SCHRODER VGBF150F10-3
KROM SCHRODER VGBF15R40-1
KROM SCHRODER VGBF25R40-1
KROM SCHRODER VGBF40R40-3
KROM SCHRODER VGBF40F40-3
KROM SCHRODER VGBF50F40-3
KROM SCHRODER VGBF80F40-3
KROM SCHRODER VGBF100F40-3
KROM SCHRODER Pressure regulating valve NEW + ORIGINAL+ ONE YEAR WARRANTY
