KROM SCHRODER燃气电磁阀VAN系列技术参数
Gas types: natural gas, LPG (gaseous), biogas(max. 0.1 %-by-vol. H2S) or air; other gases on request. |
The gas must be dry in all temperature conditions and must not contain condensate. |
Max. inlet pressure pu: 500 mbar (7 psig). |
Leakage rate: ≤ 500 cm³/h (0.132 gal/h). |
Closing time: quick closing: < 1 s. |
Ambient temperature: -20 to +50°C (-4 to +122°F), for short periods up to +60°C (+140°F),storage temperature: 0 – 60°C (32 – 140°F),no condensation permitted. |
Long-term use in the upper ambient temperature range accelerates the ageing of the elastomer materials and reduces the service life (please contact manufacturer) |
Cable gland: M20 x 1.5. |
Electrical connection: cable with max. 2.5 mm2 (AWG 12) or plug with socket to EN 175301-803. |
Enclosure: IP 65. |
Duty cycle: 100%. |
Power factor of the solenoid coil: cos ϕ = 1. |
Switching frequency: any. |
Valve housing: aluminium. |
Valve seal: NBR. |
KROM SCHRODER燃气电磁阀VAN系列介绍及选型
电磁安全阀VAN设计用于监测与可视排放装置结合使用的气阀的密封性。它能够清除多余或泄漏的气体。电磁安全阀VAN在断电时打开。
VAN..S、VAN..G配有带可视位置指示器的闭合位置开关。指示电磁溢流阀是打开还是关闭。
The magnetic relief valve VAN is designed to monitor gas valves for tightness used in conjunction with a visual discharge unit. It enables the purging of excess or leakage gas. The magnetic relief valve VAN is open when it is de-energized.
The VAN..S, VAN..G is fitted with a closed position switch with a visual position indicator. It is indicated whether the magnetic relief valve is open or closed.

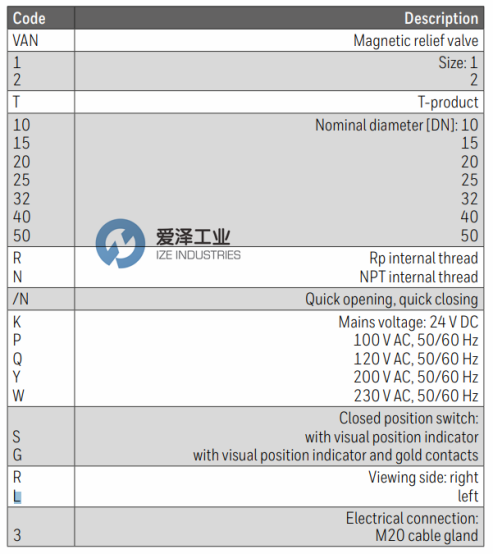

KROM SCHRODER燃气电磁阀VAN系列其他常用型号：
KROM SCHRODER VAN115R/NW
KROM SCHRODER VAN120R/NW
KROM SCHRODER VAN125R/NW
KROM SCHRODER VAN240R/NW
KROM SCHRODER VAN250R/NW
KROM SCHRODER Magnetic relief valve NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向先进制造工业提供高端制造技术和设备。代理经营世界先进的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于KROM SCHRODER燃气电磁阀VAN125R/NW 88012136的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for KROM SCHRODER products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.ize-industries.com.
KROM SCHRODER燃气电磁阀VAN系列VAN125R/NW 88012136介绍及选型
