WANDFLUH数字放大器模块SD7352D26-BA技术参数
Control cubicle | S |
Digital | D7 |
Adjustable with | 3 = PASO without manual operation |
Software configuration (function of card) | 5 = Enhanced amplifier |
2-solenoid version | 2 |
Supply voltage | D2 = 24 VDC |
Enhanced amplifier | 6 = Analog input 1 to 4: all current |
Enhanced amplifier | B = Analog input 1 and 2: 10-bit resolution |
Option fieldbus | A = without fieldbus |
WANDFLUH数字放大器模块SD7系列介绍
用于安装在圆顶导轨上的数字放大器模块，可控制带一个或两个电磁阀的比例阀或切换阀。参数设置可通过 Wandfluh 公司的“PASO”菜单式参数设置和诊断软件（USB 接口）完成，也可通过前面板上的手动操作完成。放大器模块标配独立的升压和降压斜坡以及固定可调指令值。电子元件可选配不同的现场总线接口。
作为一种卡扣式模块，放大器模块主要应用于工业领域。该模块可安装在圆顶导轨上。通过端子螺钉连接，无需特殊工具即可快速完成调试。该放大器模块尤其适用于具有附加功能的应用，例如斜坡、固定指令值等。
Digital amplifier module for installation on dome rail for controlling proportional or switching valves with one or two solenoids. The parameterisation takes place by means of menu-controlled parameterisation and diagnostics software «PASO» from Wandfluh (USB interface) or optionally with a manual operation on the front panel. Separate ramps for up and down as well as fixed adjustable command values are integrated in the amplifier module as standard. The electronics are optionally available with different fieldbus interfaces.
As snap-on module, the amplifier module is mainly utilised in the industrial field. The module can be mounted on dome-rails. The connection with terminal screws enables commissioning without special tools in a short time. The amplifier module is particularly suitable for applications with additional functions such as ramps, fixed command values, etc.

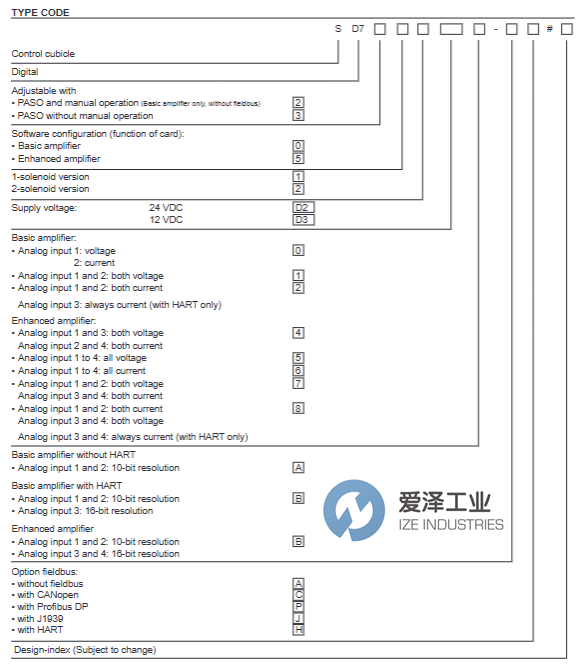

WANDFLUH数字放大器模块SD7系列选型
WANDFLUH数字放大器模块SD7系列其他常用型号：
WANDFLUH SD7352D26-BA
WANDFLUH SD7302D20-AA
WANDFLUH SD7352D20-BA
WANDFLUH SD7332D22-AA
WANDFLUH SD7362D26-BA
WANDFLUH SD7362D24-BA
WANDFLUH SD7362D25-BP
WANDFLUH SD7362D25-BA
WANDFLUH SD7362D24-BP
WANDFLUH SD7332D21-AA
WANDFLUH SD7332D20-AA
