规格描述

REXROTH控制器VT-MAC8系列技术参数

Technical data
Operating voltage	UB 18 to 36 VDC / max 3.6 A
Current consumption	Master without axis 500 mA Master with axes 800 mA Slave 400 Ma
Processor	MPC860 and MPC555
Memory	16 MB SDRAM, 16 MB Flash, 8 KByte DPR 4 MB Flash (MPC555) 2 MB SRAM (MPC555)
Analog inputs
Voltage inputs (differential inputs)	±10 V, 12 bits with 4-fold oversampling • Input voltage UE Max. +10 V to –10 V • Input resistance RE 160 kΩ • Resolution 5 mV
Current inputs	• Input current / input resistance IE / RE 4 to 20 mA / 100 Ω ±20 mA / 500 Ω • Leakage current IV 12 μA • Resolution 4 μA
Analog outputs
Voltage outputs	• Output voltage Unom ±10 V PWM (pulse width modulation) • Output current Imax 10 mA • Load Rmin 2 kΩ
Current outputs	• Output current normalized Inom ±20 mA • Load Rmax 500 Ω • Resolution 1 mV
Serial interfaces	Standard RS232 (V 24) (19.2 KBaud) RS485 (115 KBaud) Optional PROFIBUS DP (max. 12 MBaud) CANopen (max. 1 MBaud)
Switching inputs	Quantity 32 Logic level log 0 (low) 0 V to +5 V log 1 (high) +10 V to 36 V RE 3 kΩ ±10 %
Switching outputs	Quantity 24 Logic level log 0 (low) 0 V to +5 V; log 1 (high) +10 V to 36 V; current carrying capacity up to 50 mA
Admissible operating temperature range	0 to 50 °C
Storage temperature range	–20 to 70 °C

产品介绍

爱泽工业（ize-industries）并不是本网站所列所有产品的授权代理商或经销商。本网站使用的所有产品名称，商标，品牌等均属于各自品牌厂家所有。本网站在产品或图片描述中，出现具有这些名称，商标，品牌等信息的产品仅用于识别目的，并非旨在表明任何与持有者的从属及授权关系。

REXROTH控制器VT-MAC8系列介绍

MAC8是Rexroth的模块化设计数字多轴数控系统。它由一个主卡组成，主卡可配备0轴、2轴或4轴控制器，如有需要，最多可扩展至7个从卡，每个从卡可控制4个轴。因此，它是处理多达32个可插补轴的复杂控制任务的理想解决方案。通过本地以太网，可以连接多个MAC8。

MAC8通过现场总线（PROFIBUS DP 或 CAN）或以太网与上级PLC机床控制系统通信。它具有特殊的液压控制特性，能够以全自动方式控制机床或机床部件的运动，因此也可以接收PLC指令。传感器和执行器也可以通过CAN总线进行分析和/或激活。

The MAC8 is the digital Rexroth multi-axis NC control in modular design. It consists of a master card with no, 2 or 4 axis controllers and can be extended with up to seven slave cards for four axes each, if necessary. It is thus the perfect solution for complex control tasks with up to 32 interpolatable axes. Using local Ethernet, more MAC8 can be connected.

The MAC8 communicates with the superior PLC machine control via field bus (PROFIBUS DP or CAN) or via Ethernet. It has special hydraulic control characteristics and is able to control the movements of the machine or machine parts in a completely automatic manner and can thus also accept PLC tasks. Sensors and actuators can also be analyzed and/or activated via CAN bus.

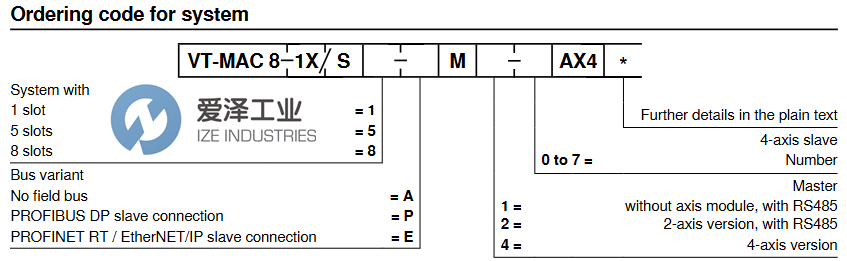

REXROTH控制器VT-MAC8系列选型

REXROTH控制器VT-MAC8系列其他常用型号：

REXROTH R901102781 VT-MAC8-1X/S5-PM2-1AX4

REXROTH R901075726 VT-MAC8-1X/K-AM1

REXROTH R901075728 VT-MAC8-1X/K-AM2

REXROTH R901075730 VT-MAC8-1X/K-AM4

REXROTH R901075732 VT-MAC8-1X/K-PM1

REXROTH R901075734 VT-MAC8-1X/K-PM2

REXROTH R901075738 VT-MAC8-1X/K-PM4

REXROTH R901075752 VT-MAC8-1X/K-AX4

REXROTH R901275171 VT-MAC8-1X/K-EM4

REXROTH R901075757 VT-MAC8-1X/K-DUMMY

REXROTH controller NEW + ORIGINAL+ ONE YEAR WARRANTY

爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。

如果有任何关于REXROTH控制器R901102781 VT-MAC8-1X/S5-PM2-1AX4的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。

If you have any question for REXROTH products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.ize-industries.com.

REXROTH控制器VT-MAC8系列R901102781 VT-MAC8-1X/S5-PM2-1AX4技术参数及介绍
