TESCOM减压阀44-6800系列技术参数
Operating parameters | |
Maximum Inlet Pressure | Standard 3500 psig /241 bar / 24,132 kPa |
Maximum Outlet Pressure | 0-25, 0-50, 0-100, 0-250, 0-500 psig |
Design Proof Pressure | 150% maximum rated |
Leakage | Bubble-tight |
Heater Temperature Analog Output | 4-20 mA signal for monitoring heater coil temperature |
Flow Capacity | Cv 0.02 |
Media contact materials | |
Body | 316 Stainless Steel, Nickel Alloy (Hastelloy®), or Inert coating options |
Diaphragm and Spring | Cobalt Chrome Nickel Alloy (Elgiloy®), Nickel Alloy (Hastelloy®) |
Seat | Vespel® |
Remaining Parts | 316 Stainless Steel, Nickel Alloy (Hastelloy®), or Inert coating options |
Other | |
Connections | NPTF, TUBE STUB |
Cleaning | CGA 4.1 and ASTM G93 |
Weight | Electric: 6.3 lbs / 2.9 kg Steam: 3.1 lbs / 1.4 kg |
TESCOM减压阀44-6800系列介绍
TESCOM 44-6800系列汽化调节器是气相色谱分析仪样品预处理系统的关键组件，可确保将单相蒸汽样品输送至分析仪。该调节器具有电压尖峰耐受性和耐高温性能，适用于全球应用。
TESCOM 44-6800 Series Vaporizing Regulator is a key component of sample conditioning systems for gas chromatograph analyzers that ensure the delivery of single-phase vapor samples to the analyzer.With a high tolerance for voltage spikes and high ambient temperatures, this regulator is designed for worldwide applications.

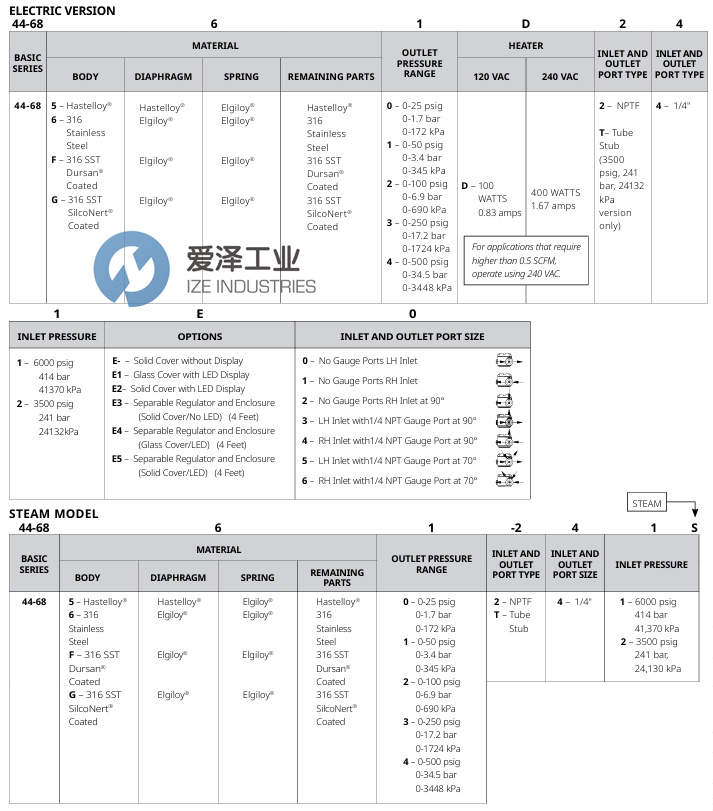

TESCOM减压阀44-6800系列选型
TESCOM减压阀44-6800系列其他常用型号：
TESCOM 44-6864D242E10
TESCOM 44-6864D241E10
TESCOM 44-6861D241E-3
TESCOM 44-6861D241E-1
TESCOM pressure reducing valve NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于TESCOM减压阀44-6864D242E10的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for TESCOM products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.ize-industries.com.
TESCOM减压阀44-6800系列44-6864D242E10技术参数及介绍
