CCS压力开关6900P系列技术参数
Specifications | |
Additional information | |
Environmental Approvals | IP65, IP66, NEMA 4, NEMA 4X, NEMA 7, NEMA 9, NEMA 13, NACE, RoHS |
Industry | Industrial |
Instrumentation | Pressure Switch |
Environment | Non-Hazardous |
Certification Agency Approvals | CSA, CE, CRN, CCC |
Operating Temperature Range | -40° to 186 °F |
Process Connection Fitting Size | Female 1/4" NPT, Female 7/16" UNF |
Process Connection Material | Aluminum |
Housing Enclosure | Aluminum |
Electrical Connection | Male 1/2" NPT |
Electrical Switch Type | SPDT |
Voltage Electrical Rating VAC | 0 to 250 VAC |
Amperes Electrical Rating | 0.5 to 11 A |
Junction box app | 141-18, 141-19, 141-20, 141-28 |
Fixed or Adjustable Set Point | Adjustable |
Presetting | Factory Set, Not Factory Set |
Tagging | Mylar, Stainless Steel |
Accessories | Manifold, Mounting Kit |
Increasing Pressure Range | 15 to 200 PSIG, 150 to 1600 PSIG, 500 to 3200 PSIG, 2000 to 6500 PSIG, 5000 to 11000 PSIG, 10000 to 16000 PSIG |
Decreasing Pressure Range | 1500 to 6000 PSIG, 330 to 3030 PSIG, 40 to 1490 PSIG, 4850 to 9500 PSIG, 5 to 190 PSIG, 7500 to 13500 PSIG |
Pressure Type | Gage |
Media | Oil Based |
Increasing Pressure Ranges | 3 – 180 PSI, 180.01 – 3400 PSI, 3400.01 – 16000 PSI |
Decreasing Pressure Ranges | 1.16 – 173 PSI, 173.01 – 3180 PSI, 3120.01 – 13500 PSI, 3180.01 – 13500 PSI |
Maximum System Pressure | 2000, 3000, 5000, 10000, 14000, 17000 |
Maximum Proof Pressure | 3000, 5000, 7500, 13000, 20000, 25000 |
Process Connection Seal | O-Ring Sealed Piston |
O-ring | Buna N |

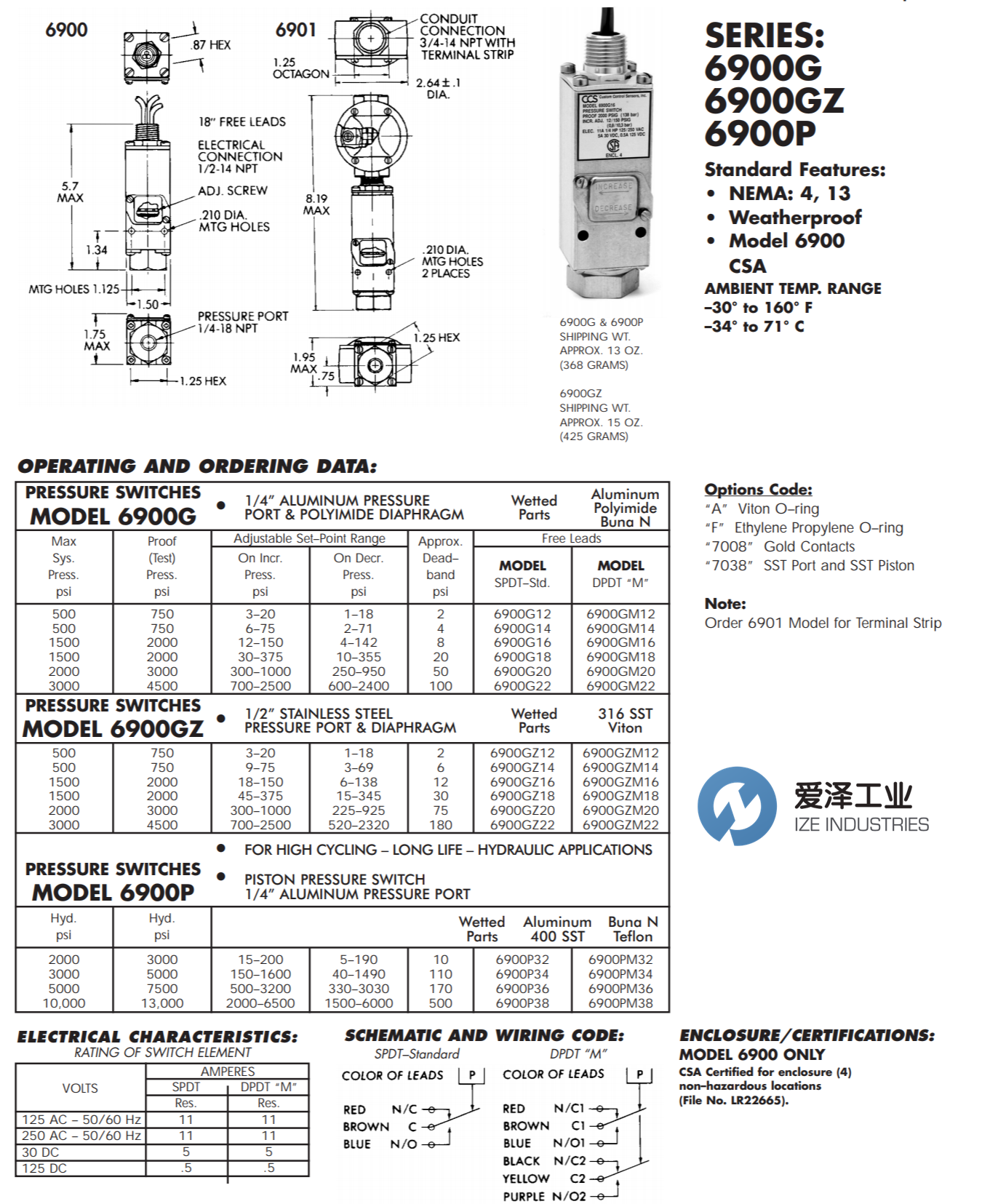

CCS压力开关6900P系列介绍及选型图
The general purpose 6900P Series is the most popular, all-around, all-aluminum gage pressure switch with a piston based port for fluid applications. This hydraulic pressure switch is designed with high vibration and shock resistance utilizing Dual Snap® disc spring technology ensuring high accuracy and repeatability. It comes with high over-pressure capabilities and still relatively compact in size to conveniently mount on panels. NEMA 4X and IP66 rating is optimum for wet conditions. It meets the demand for all applications commercial, industrial and otherwise.
通用 6900P系列是最流行的全铝表压开关，带有用于流体应用的活塞端口。该液压开关采用 Dual Snap碟形弹簧技术，具有高抗振性和抗冲击性，可确保高精度和可重复性。它具有很高的过压能力，而且尺寸仍然相对紧凑，可以方便地安装在面板上。NEMA 4X 和 IP66 等级最适合潮湿条件。它满足所有商业、工业和其他应用的需求。
CCS压力开关6900P系列其他常用型号：
CCS 6900P32
CCS 6900P34
CCS 6900P36
CCS 6900P38
CCS 6900PM32
CCS 6900PM34
CCS 6900PM36
CCS 6900PM38
CCS Pressure Switch NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向先进制造工业提供高端制造技术和设备。代理经营世界先进的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于CCS压力开关6900P34的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for CCS products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.ize-industries.com.
CCS压力开关6900P系列6900P34技术参数
