KPM阀RBE系列技术参数
Hydraulic Data | ||
Nominal Pressure | 315 bar | |
Maximum Back Pressure | 160 bar | |
Pressure Fluid | Mineral oil, phosphate ester, fatty acid ester and water glycol.Phosphate ester is only suitable for use with FPM seals. | |
Pressure Fluid Temperature Range | -20°C to +70°C | |
Viscosity Range | 2.8 to 380cSt | |
Degree of Contamination | Maximum permissible degree of contamination of fluid is to NAS 1638 Class 9. | |
Settable Pressure | Minimum - Flow dependent | |
Electrical Data | ||
Voltage | DC | AC |
Nominal voltage | 12, 24V | 100, 200, 110, 220 V, 50/60Hz |
Voltage tolerance | ±10% | |
Nominal Power | 26 W | 58VA (holding) |
Protection | IP65 | |
Permissible switching frequency | 15000 1/h | 7200 1/h |
Connection type | Plug Connector (single connection) | |
KPM阀RBE系列介绍
RB型和RBE系列10型压力释放阀是平衡活塞式、座式释放阀，用途如下：
控制液压回路中的最大压力，从而防止液压回路、液压单元、泵等过载。
控制液压单元内的压力，例如液压回路的加载/卸载压力。
特点
精准的运动、快速的响应和稳定性。
最小的流路阻力。
相对较小的压力过载。
与无冲击阀配合使用时，卸载平稳无冲击。
适用于底板安装，端口符合DIN 24 340 E型、ISO 6264和CETOP-RP 121 H标准。底板需单独订购。
适用于歧管安装。
三种调节元件：旋转旋钮；带六角形和保护帽的套筒；带刻度的可锁定旋转旋钮；以及带刻度的旋转旋钮。
两种压力等级。
通过内置的换向阀进行电磁控制卸载。
Type RB and RBE Series 10 Pressure Relief Valves are balance piston, seat type, relief valves that are used:
To control the maximum pressure within a hydraulic circuit thus preventing overload of hydraulic circuit, hydraulic unit, pumps, etc.
To control pressure within a hydraulic unit, e.g. load/unload hydraulic circuit pressure.
Features
Accurate movement, quick response and stability.
Minimised flow pass resistance.
Relatively small pressure override.
Unloads smoothly without shocks if used with a non shock valve.
For sub-plate mounting, porting pattern to DIN 24 340 Form E, ISO 6264 and CETOP-RP 121 H. Sub-plates must be ordered separately.
Suitable for installation in manifolds.
Three adjustment elements: rotary knob; sleeve with hexagon and protective cap; lockable rotary knob with scale and rotary knob with scale.
Two pressure ratings.
Solenoid operated unloading via a built-on directional spool valve.

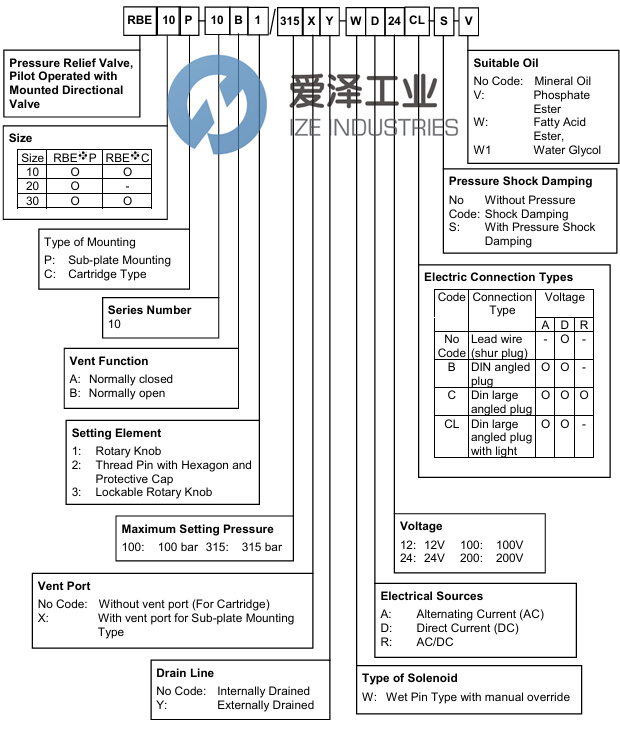

KPM阀RBE系列选型
KPM阀RB系列其他常用型号：
KPM RBE20P-10-B2/315X-WA220/50CL-S-L18
KPM RBE30P-10- B2/315X-WA110/50CL-S
KPM RBE10P-10-B1/100X-Wa100Cl
KPM RB30P-10-2/315X-L18
KPM RB20P-10-2/100X-L18
