NUMATICS阀031SA415E000061技术参数
Valve Series & Port Size | 031 = 1/8 |
Valve Type | SA = Single Solenoid,Spring Return |
Function | 4 = 2 Position, 4-Way |
Mounting | 15 = Manifold Block w/Side and Bottom Ports |
Wiring Option | E = Proprietary DC Plug-In |
Port Type | 0 = NPTF |
Special Options | none |
Voltage | 61 = 24 VDC |
NUMATICS阀Mark 3系列介绍
Mark 3系列是高流量微型方向控制阀系列。该系列气动阀在恶劣条件下具有可重复的可靠性能，非常适合高循环率的机器应用，例如装瓶、压机车间和冲压车间以及轮胎制造。Mark 3 系列采用模块化设计，易于安装和配置。
The Numatics Series Mark 3 is a line of high-flow miniature directional control valves. The pneumatic valves´ repeatable, reliable performance in harsh conditions make them ideal for high cycle-rate machine applications such as bottling, press room and stamping, and tire manufacturing. The Mark 3 Series´ modular design enables easy installation and configuration.

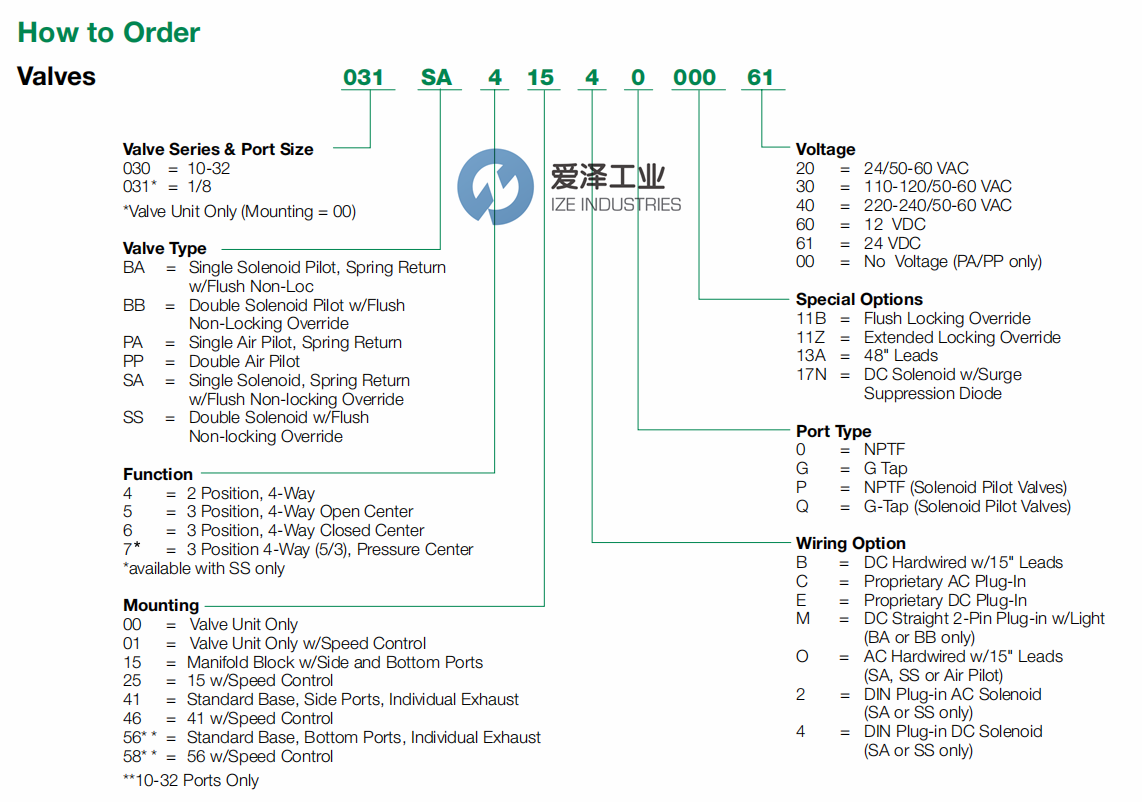

NUMATICS阀Mark 3系列选型
NUMATICS阀Mark 3系列其他常用型号：
NUMATICS 031SA415E000061
NUMATICS 031SA4154000061
NUMATICS 031SA415B000061
NUMATICS 031SA415C000061
NUMATICS 031SA415M000061
NUMATICS 031SA415O000061
NUMATICS 031SA4152000061
NUMATICS 030SA415E000061
NUMATICS 030SA4154000061
NUMATICS solenoid valve NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业集产品开发、设计、制造、销售、服务于一体，代理经营世界先进的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于NUMATICS阀031SA415E000061的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for NUMATICS products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.ize-industries.com.
NUMATICS阀Mark 3系列031SA415E000061技术参数及介绍
