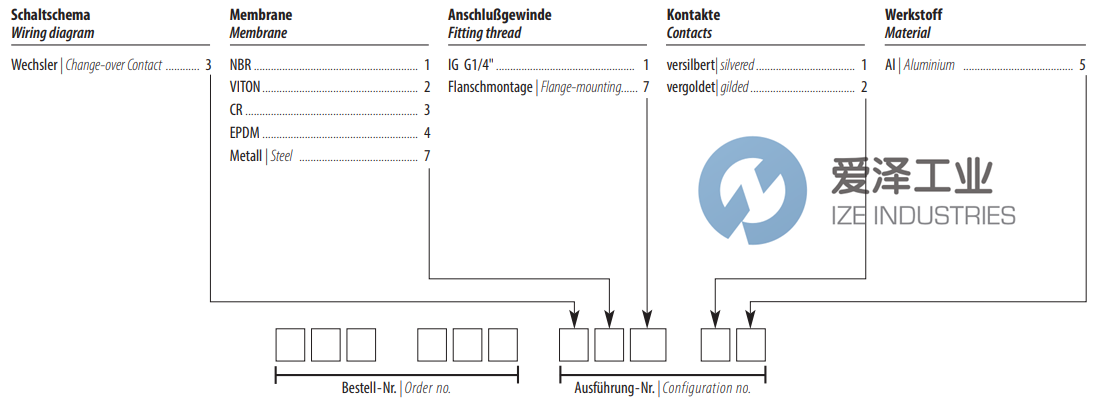

Order no.

480006

Pressure setting range

0,3 – 6bar

Tolerance

± 0,2bar

Working pressure max.

6bar

Overpressure limit max.(static)

10bar

Design

Spring-loaded diaphragm

Diaphragm

NBR, specialdesign VITON,EPDM,Steel

Manner of fastening

Forale thread or by 2 through holes in the case

Fitting thread

G 1/4”or flange-mounted

Mounting position

Any

Ambient temperature

-25 °C to + 85 °C,higher temperatures on B13demand

Medium

Air,others on demand

Adjustability

Under pressure

Switch back difference

15%– 25%

Mechanical life

106

Material

Aluminium, black anodizal

Weight approx.

175g

Switching element

Microswitch- silver-plated contacts / special gold-plated contacts

Reference voltage

250 V (PG9), 42 V (Rundstecker M12x1)

Reference frequency

Not over 100 Hz

Switching frequency max.

200/min.

Electrical connection

Connector PG9 DIN EN 175301-803,optionally with round plug M12x1

Protective system

IP65, terminale IP00 DIN 40050
