KEB电机C2SMHF2-54I9技术参数

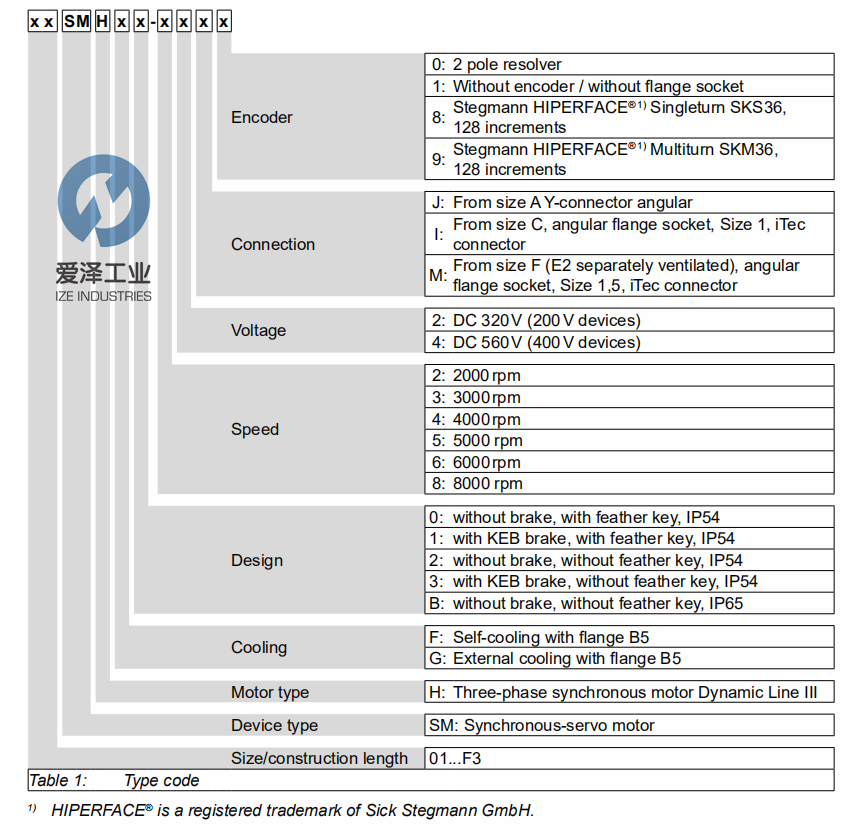

Size/construction length | C2 |
Device type | SM: Synchronous-servo motor |
Motor type | H: Three-phase synchronous motor Dynamic Line III |
Cooling | F: Self-cooling with flange B5 |
Design | 2: without brake, without feather key, IP54 |
Speed | 5: 5000 rpm |
Voltage | 4: DC 560 V (400 V devices) |
Connection | I: From size C, angular flange socket, Size 1, iTec connector |
Encoder | 9: Stegmann HIPERFACE Multiturn SKM36, 128 increments |
KEB电机DYNAMIC LINE III系列选型
KEB电机DYNAMIC LINE III系列介绍
SMH 系列伺服电机为 6、8 或 10 极永磁同步电机，采用正弦波感应电压。
KEB 同步伺服电机专为数字伺服控制器设计，仅适用于工业系统。
The servo motors of the SMH series are 6, 8 or 10 pole permanent-field synchronous motors with a sine-wave inducted voltage.
The KEB synchronous servo motors are exclusively designed for the operation at digital servo controllers. They are intended for industrial systems only.
KEB电机DYNAMIC LINE III系列其他常用型号：
KEB C2SMHF2-54I9
KEB C1SMHF
KEB C2SMHF
KEB C3SMHF
KEB D1SMHF
KEB D2SMHF
KEB D3SMHF
KEB E1SMHF
KEB E2SMHF
KEB E3SMHF
KEB motor NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业集产品开发、设计、制造、销售、服务于一体，代理经营世界先进的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于KEB电机C2SMHF2-54I9的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for KEB products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.ize-industries.com.
