DUPLOMATIC阀DSE3J系列技术参数
Max operating pressure: |
|
Nominal flow with ∆p 10 bar P-T | 4 - 12 - 30 l/min |
Hysteresis | < 0,2% % of Q max |
Repeatability | < 0,2% % of Q max |
Threshold | < 0,1% |
Valve reproducibility | ≤ 5% |
Ambient temperature range | -20 / +60 °C |
Fluid temperature range | -20 / +80 °C |
Fluid viscosity range | 10 ÷ 400 cSt |
Fluid contamination degree | according to ISO 4406:1999 |
Recommended viscosity | 25 cSt |
Mass: |
|
DUPLOMATIC阀DSE3J系列介绍
DSE3J是一种直动式方向阀，具有集成的电动比例控制、反馈和安装接口，符合 ISO 4401 (CETOP RP 121H) 标准。
阀门开度和流量可以与参考信号成比例地连续调制。传感器和数字卡可以精确控制光标的位置，减少滞后和响应时间并优化阀门的性能。
它具有故障安全功能。
The DSE3J is a direct operated directional valve with integrated electric proportional control, feedback and mounting interface in compliance with ISO 4401 (CETOP RP 121H) standards.
The valve opening and hence flow rate can be modulated continuously in proportion to the reference signal. Transducer and digital card allow a fine control of the positioning of the cursor, reducing hysteresis and response time and optimizing the performance of the valve.
It is available with fail safe function.

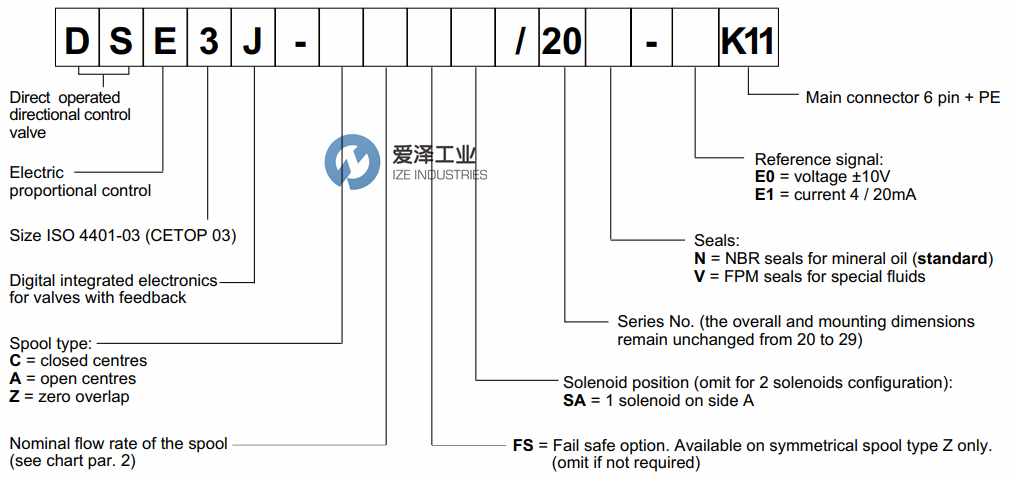

DUPLOMATIC阀DSE3J系列选型
DUPLOMATIC阀DSE3J系列其他常用型号：
DUPLOMATIC DSE3J-C04FSSA/31N-E0K11A
DUPLOMATIC DSE3J-Z01/20N-E1K11
DUPLOMATIC DSE3J-Z12/20N-E0K11
DUPLOMATIC valves NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于DUPLOMATIC阀DSE3J-Z01/20N-E1K11的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for DUPLOMATIC products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
DUPLOMATIC阀DSE3J系列DSE3J-Z01/20N-E1K11介绍及选型
