HYDAC过滤装置MFU-100E34-GN-FOD技术参数
Type | MFU = Mobile Filter Unit |
Size | 100 = 100 l/min |
Model | E = Economy |
Element type | 34 = N100 |
Pump version | G = gear pump |
Power supply | N = 400 V, 50 Hz, 3 Ph |
Seal material | F = FKM (FPM, Viton®) |
Clogging indicator | OD = optical differential pressure indicator for MFU type E (or type S with 400 V without neutral conductor) |
HYDAC过滤装置MFU系列介绍
MFU-30-100系列移动过滤单元可用作便携式服务单元，用于液压系统注油、小型液压系统冲洗以及旁路清洗。也可进行未过滤的排放。过滤元件可去除固体颗粒污染物和游离水。可选配动力单元，用于连续监测流体。无线通信和云平台连接使其能够集成到现代工业4.0环境中。
The MobileFiltration Unit MFU-30 - 100 series units are used as portable service units for filling hydraulic systems, flushing small hydraulic systems and for cleaning in bypass flow. Unfiltered draining is also possible. Solid particle contamination and free water can be removed by the filter elements. Optionally, the power units can be equipped with measurement technology for continuous monitoring of the fluid. Wireless communication and connection to cloud portals enable incorporation into modern I4.0 environments.

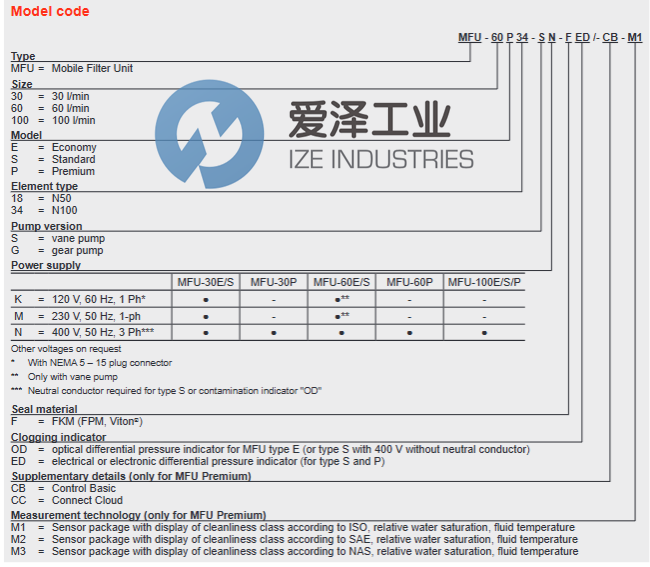

HYDAC过滤装置MFU系列选型
HYDAC过滤装置MFU系列其他常用型号：
HYDAC MFU-100E34-GN-FOD
HYDAC MFU-100E18-GN-FOD
HYDAC MFU-100E34-SN-FOD
HYDAC MFU-100P18-GN-FED/-CB-M1
HYDAC MFU-100P18-GN-FED/-CC-M1
HYDAC MFU-100P34-GN-FED/-CB-M1
HYDAC MFU-100P34-GN-FED/-CB-M3
HYDAC MFU-100P34-GN-FED/-CC-M1
HYDAC MFU-100P34-SN-FED/-CB-M1
HYDAC MFU-100S34-GN-FED
HYDAC MFU-100S34-SN-FED
HYDAC MobileFiltration Unit NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向先进制造工业提供高端制造技术和设备。代理经营世界先进的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于HYDAC过滤装置MFU-100E34-GN-FOD的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for HYDAC products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.HYDAC-industries.com.
HYDAC过滤装置MFU系列MFU-100E34-GN-FOD技术参数及介绍
