HORIUCHI液压缸F系列技术参数
Specifications | ||
Series Name | F | |
Nominal Pressure | 7MPa: FS ; 14MPa: FF | |
Model | Standard: FS、FF | Switch adjusted: FSR、FFR |
Bore | ∅32·∅40·∅50·∅63·∅80·∅100 | ∅32·∅40·∅50·∅63·∅80·∅100 |
Maximum Allowable Pressure | 7MPa | |
Proof Pressure | FS:10.5MPa ; FF: 21MPa | |
Minimum Working Pressure | FS: Less than 0.29MPa ; FF: Less than 0.56MPa | |
Thread Tolerance | JIS6g/6H (Corresponds to JIS Grade 2) | |
Range of Operating Temperature | Standard Specifications:-10°C to +80°C | Standard Specifications:-10°C to +60°C |
Hydraulic Oil Applied | General purpose mineral hydraulic oil | |
Adjustment Standard | Governed by Former JIS B 8354 | |
HORIUCHI液压缸F系列介绍
活塞杆的滑动部分采用优质镀铬结构，杆衬套采用软青铜铸造，以防止活塞杆磨损，并采用高性能U型密封件作为杆填料。这些特性确保了可靠性和耐用性，同时有效防止漏油。
标准气缸采用锥形缓冲结构，与传统气缸相比，可降低约50%的冲击压力。这种缓冲结构可在短时间内实现理想的平稳停止。
标配高性能、可靠的防尘开关（磁性接近开关）。由于其一体化紧凑的结构，无需外接传感器，从而大大提高了气缸的安装效率。
The sliding part of the rod is of high-quality chrome-plated construction and a soft bronze casting is used for the rod bushing to prevent scarring of the rod with high performance U-shape packing used as the rod packing. These features provide reliability and durability while protecting against oil leakage.
Tapered cushion construction is incorporated into our standard cylinders and results in an approximate reduction of 50% of surge pressure as compared to conventional cylinders. This cushion construction provides ideal smooth stoppage over a very short time.
Our high-performance reliable dustproof switches (magnetic proximity switches) are standard. Because of their unified compact construction. there is no need to attach external sensors. thereby making cylinder installation very efficient.

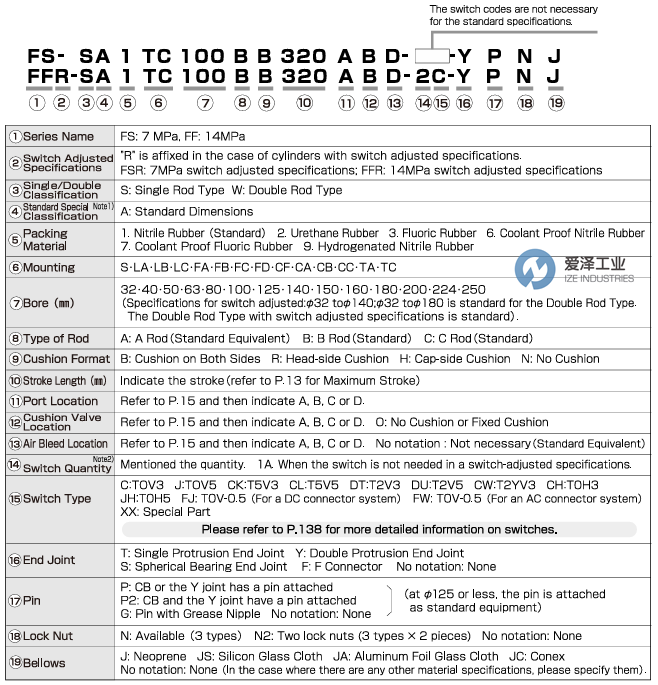

HORIUCHI液压缸F系列选型
HORIUCHI液压缸F系列其他常用型号：
HORIUCHI FFR-WB-2FA63BB50ABD-1A R1612514
HORIUCHI FFR-SB-1FB125BB250ABD-2J-N R1012515
HORIUCHI FFR-SB-2TA40BB70ACC-ABD-2J-T
HORIUCHI FFR-SB-2TA40BB100ACC-ABD-2J-T
HORIUCHI FSR-SA-2CB40BB50ABD-2SH-YP2 R1612267
HORIUCHI FSR-SA-2LA50BB125DBA-2SH-YP R1612272
HORIUCHI hydraulic cylinder NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于HORIUCHI液压缸FFR-WB-2FA63BB50ABD-1A R1612514的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for HORIUCHI products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.ize-industries.com.
HORIUCHI液压缸F系列FFR-WB-2FA63BB50ABD-1A R1612514技术参数及介绍
