PONYTE隔膜泵DP-100B技术参数

PONYTE隔膜泵DP系列介绍

DP系列隔膜泵是容积泵中较为特殊的一种形式。利用电机的圆周运动，通过机械装置使水泵内部的隔膜做往复运动，从而压缩、拉伸泵腔内的空气，在单向阀作用下，在排水口处形成正压;在抽水口处形成真空，从而与外界气压间产生压力差。在压力差的作用下，将水压入进水口，再从排水口排出。在机械传递的动能作用下，水持续不断的吸入、排出，形成较稳定的流量。

特点

安装方便

DP系列隔膜泵具有体积小巧，外形美观，结构紧凑，噪音低压力高等优点，是民用和商用的理想设备。

性能优秀

DP系列隔膜泵可选择不同材质（GFRPP/GFRPA），可安全输送各种液体。内置压力开关，无需油封，密封性能优异，具有自吸快，稳定，绝对不需要手工加引水。

寿命延长

DP系列隔膜泵允许干运转。泵腔体和电机分离，长时间使用液体不会渗入电机造成故障，从而大大延长了泵的使用寿命。

规格齐全

DP系列隔膜泵共有20多种型号。除了标准外，还有耐油型，耐腐蚀型。产品型号丰富多样，选择时具有最大的灵活性。

用途

DP系列隔膜泵具有自吸功能，适用于反渗透水质净化系统，喷雾装置，工业设备，汽车冲洗，园林绿化，市政扫路车，美容器械，医疗设施，卫生环保等液体输送。

The DP series diaphragm pump is a rather unique type of positive displacement pump. Utilizing the rotational motion of an electric motor, a mechanical mechanism causes the diaphragm inside the pump to move back and forth, thereby compressing and expanding the air within the pump chamber. Under the action of a one-way valve, positive pressure is created at the discharge port, and a vacuum is created at the suction port, resulting in a pressure difference with the external atmospheric pressure. This pressure difference forces water into the inlet and then out through the discharge port. Through the kinetic energy transferred by the mechanical mechanism, water is continuously drawn in and expelled, creating a relatively stable flow rate.

Features

Easy Installation

The DP series diaphragm pumps are compact, aesthetically pleasing, and feature a compact structure, low noise, and high pressure, making them ideal for both residential and commercial applications.

Excellent Performance

The DP series diaphragm pumps are available in different materials (GFRPP/GFRPA) and can safely transport various liquids. They feature a built-in pressure switch, require no oil seals, offer excellent sealing performance, and have fast and stable self-priming capabilities, eliminating the need for manual priming.

Extended Lifespan

The DP series diaphragm pumps allow for dry running. The pump chamber and motor are separated, preventing liquid from entering the motor and causing malfunctions during prolonged use, thus significantly extending the pump's lifespan.

Complete Specifications

The DP series diaphragm pumps come in over 20 models. In addition to standard models, oil-resistant and corrosion-resistant versions are also available. The wide variety of models offers maximum flexibility in selection.

Applications

The DP series diaphragm pumps have self-priming capabilities and are suitable for liquid transfer in reverse osmosis water purification systems, spraying devices, industrial equipment, car washing, landscaping, municipal street sweepers, beauty equipment, medical facilities, and environmental protection applications.

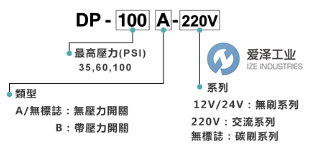

PONYTE隔膜泵DP系列选型

PONYTE隔膜泵DP系列其他常用型号：

PONYTE DP-100B

PONYTE DP-35B

PONYTE DP-50B

PONYTE DP-60B

PONYTE DP-60A

PONYTE DP-80B

PONYTE DP-100A

PONYTE DP-125B

PONYTE DP-130A

PONYTE DP-130B

PONYTE DP-150A

PONYTE DP-180A

PONYTE diaphragm pump NEW + ORIGINAL+ ONE YEAR WARRANTY

爱泽工业成立于2010年，定位于向先进制造工业提供高端制造技术和设备。代理经营世界先进的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。

如果有任何关于PONYTE隔膜泵DP-100B的疑问，请随时致电我们，爱泽工业（021-31006702）。我们将尽全力解决您的问题。

If you have any question for PONYTE products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.ize-industries.com.

PONYTE隔膜泵DP系列DP-100B技术参数及介绍
