VICKERS泵V20-1B8B-1A11L技术参数

VICKERS泵V10/V20系列描述

EATON Vickers V10和V20系列是定量平衡型液压叶片泵。它们体积小巧，提供单泵和双泵两种型号，适用于工业和移动应用。

叶片设计具有磨损和间隙自补偿功能，使泵的容积效率在整个使用寿命期间几乎保持不变。（即使凸轮环和叶片尖端之间发生磨损，叶片始终会调整其轨道以与凸轮环接触。）

液压叶片泵在低速高压运行下不会损坏，因为泵送作用直到转速足够高到足以使叶片脱落。由于采用液压平衡设计，轴承仅承受外部载荷。因此，该泵的维护成本极低，使用寿命长。

入口或出口可以相对旋转 90°，提供应用灵活性和易于安装。

可选配流量控制和优先阀盖，使该泵可用于更多应用。流量控制盖可将流向主回路的流量限制在所需流量，同时将剩余流量转移至油箱。优先阀盖可保持流向主回路的恒定流量，同时将剩余流量转移至次级回路。每个盖板均配有一个溢流阀，用于限制主回路的最大压力。

EATON Vickers V10 and V20 series are fixed displacement and balanced type hydraulic vane pumps. With compact sizes，they are available in single pumps and double pumps for both industrial and mobile application.

The vane design with self compensation for wear and clearances makes volumetric efficiency of pump nearly constant over the service life. (the vanes always adjust its orbit to contact with the cam ring, even though wear occurs between the cam ring and vane tips)

The hydraulic vane pump is not damaged at low speed and high pressure operation because pumping action does not start until the speed is high enough for the vane to throw out. With hydralcally balanced design, the bearing is externally loaded only. Therefore， the pump requires minimized maintenance with long service life.

The inlet or outlet ports can be rotated through increments of 90°in relation to each other, providing application flexibility and easy installation.

With optional flow control and priority valve covers, the pump can be used in more applications. The flow control cover can lirmit the flow to the primary circuit at the required flow rate, while diverts remaining flow to the tank. The priority valve cover maintains a constant flow to the primary circuit, while diverts remaining flow to the secondary circuit. Each cover comes with a relief valve to limits the maximum pressure of the primary circuit.

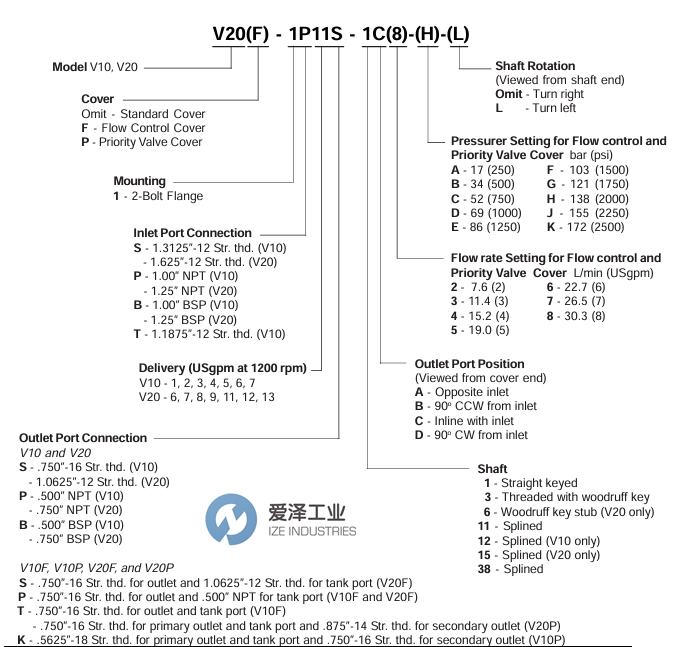

VICKERS泵V10/V20系列选型

VICKERS泵V10/V20系列其他常用型号：

VICKERS V10 1B 3B 1D 20

VICKERS V10 1B 4B 11A 20L

VICKERS V10 1P 1P 1C 20

VICKERS V10 1B 1B 11A 20

VICKERS V20 1E11S 23B 11

VICKERS V20 1P13S 1C 11

VICKERS V20 1B 11B 11C11

VICKERS V20 1B 11B 15 A11

VICKERS V20 1B 11B 1A 11

VICKERS V20 1B 8B 1A11

VICKERS V20-1B8B-1A11L

VICKERS Pump NEW + ORIGINAL+ ONE YEAR WARRANTY

爱泽工业集产品开发、设计、制造、销售、服务于一体，代理经营世界先进的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。

如果有任何关于VICKERS泵V20-1B8B-1A1IL的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。

If you have any question for VICKERS products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.ize-industries.com.

VICKERS泵V20系列V20-1B8B-1A1IL技术参数及介绍

• VICKERS泵V20-1B8B-1A11L
