REXROTH阀L8_10… (ED1-Z)系列技术参数
General | |
Valve element with 2 solenoids | 1.55 kg (3.42 lbs) |
Valve element with 1 solenoid | 1.25 kg (2.76 lbs) |
Valve element with 2 solenoids, with lever type emergency | 1.9 kg (4.2 lbs) |
Valve element with 1 solenoid, with lever type emergency | 1.6 kg (3.5 lbs) |
Ambient Temperature | –20 °C....+50 °C (-4 °F....+122 °F) (NBR seals) |
MTTFd | 150 years |
Hydraulic | |
Maximum inlet flow | 30 l/min (7.9 gpm) |
Hydraulic fluid | Mineral oil based hydraulic fl uids HL (DIN 51524 part 1). |
Fluid Temperature | –20 °C ....+80 °C (-4 °F....+176 °F) (NBR seals) |
Permissible degree of fl uid contamination | ISO 4572: βx≥75 X=12...15 |
Viscosity range | 5....420 mm2/s |
Electrical | |
Voltage type | DC (AC only with RAC connection) |
Voltage tolerance (nominal voltage) | -10 % .... +10 % |
Duty | Continuous, with ambient temperature ≤ 50°C (122°F) |
Coil wire temperature not to be exceeded | 150 °C (302 °F) |
Insulation class | H |
Compliance with | Low Voltage Directive LVD 73/23/EC (2006/95/EC), 2004/108/EC |
Coil weight with connection EN 175301-803 | 0.215 kg (0.44 lbs) |
REXROTH阀L8_10… (ED1-Z)系列介绍
带电磁控制方向阀芯的阀芯。
控制阀芯由带可拆卸线圈的电磁阀控制。
断电状态下，控制阀芯由复位弹簧保持在中间位置。
直流线圈采用湿式针管，带推杆用于机械超控；表面镀镍。
线圈可绕管旋转 360°；可通过带整流器 (RAC) 的特殊连接器接入交流电。
可选配手动超控（按钮式或螺旋式）
Valve elements with solenoid operated directional spool.
Control spools operated by solenoids with removable coils.
In the de-energized condition, the control spool is held in the central position by return springs.
Wet pin tubes for DC coils, with push rod for mechanical override; nickel plated surface.
Coils can be rotated 360° around the tube; they can be energized by AC current through special connectors with rectifi er (RAC).
Manual override (push-button or screw type) available as option

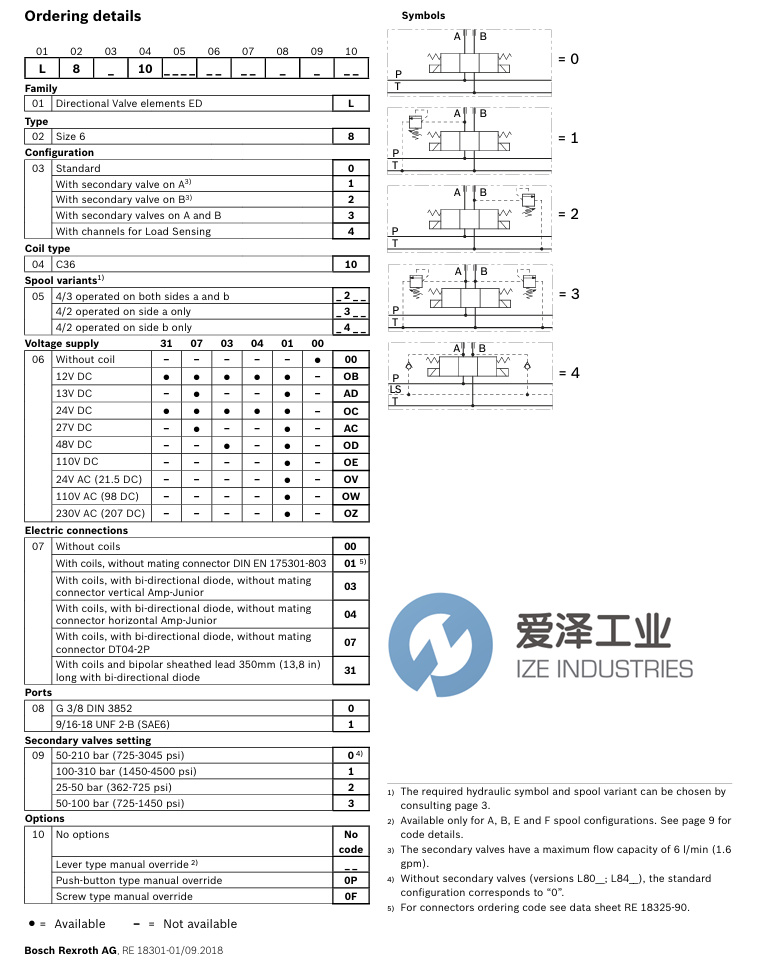

REXROTH阀L8_10… (ED1-Z)系列选型
REXROTH阀L8_10… (ED1-Z)系列其他常用型号：
REXROTH L8010E201000000 R933002238
REXROTH L8011E201000020 R933002302
REXROTH L8011E201000000 R933002301
REXROTH L8011C201OC0100 R933002296
REXROTH L8011B201OC0100 R933002281
REXROTH L8011B201OB0120 R933002277
REXROTH L8011B201000020 R933002273
REXROTH L8011B201000000 R933002272
REXROTH L8010Y301000000 R933002261
REXROTH L8010X301OC0100 R933002257
REXROTH valve NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向先进制造工业提供高端制造技术和设备。代理经营世界先进的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于REXROTH阀L8010E201000000 R933002238的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for REXROTH products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.ize-industries.com.
REXROTH阀L8010E201000000 R933002238技术参数及选型
