OMFB泵PPV90系列技术参数
TECHNICAL FEATURES | |
Flow | 90 l/min. |
Max. swash plate angle | 21,5° |
Working pressure | Continuous: 375 bar |
Absolute inlet pressure required in open circuit | 0,85 bar |
Max. permissible housing pressure (static/dynamic) | 3 bar |
Max. permissible inlet pressure (static/dynamic) | 2 bar |
Max. speed during suction operation and max. swash plate angle at 1 bar abs. Inlet pressure | 2300 rpm |
Max. speed with zero stroke and 1 bar abs. Inlet pressure | 3000 rpm |
Min. speed in continuous operation | 500 rpm |
Required drive torque at 100 bar | 150 Nm |
Drive power at 250 bar and 2000 rpm | 80 kW |
Weight | 29 Kg |

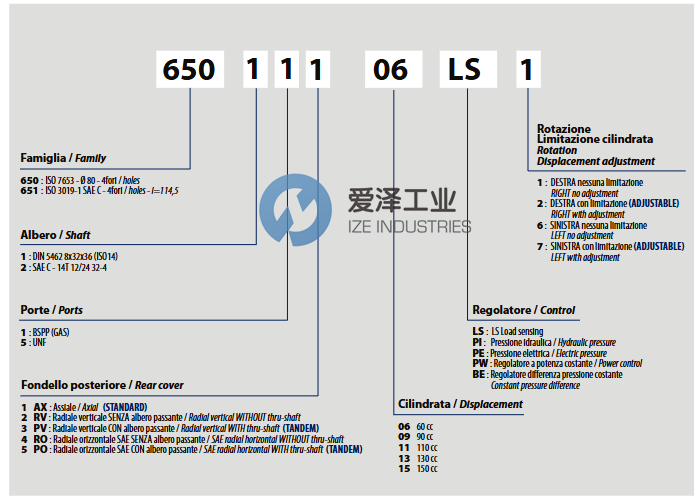

OMFB泵PPV系列选型
OMFB泵PPV系列其他常用型号：
OMFB PPV90 65011109LS7 SX ISO
OMFB PPV60 65011106LS6 SX ISO
OMFB PPV60 65011106LS1 DX ISO
OMFB PPV75 65011107LS6 SX ISO
OMFB PPV75 65011107LS1 DX ISO
OMFB PPV90 65011109LS6 SX ISO
OMFB PPV90 65011109LS1 DX ISO
OMFB PPV110 65011111LS6 SX ISO
OMFB PPV110 65011111LS1 DX ISO
OMFB PPV130 65011113LS6 SX ISO
OMFB pumps NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于OMFB泵PPV90 65011109LS7 SX ISO的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for OMFB products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.ize-industries.com.
OMFB泵PPV系列PPV90 65011109LS7 SX ISO技术参数
