REXROTH阀OE150518A009000 R930064978技术参数
Product attributes | |
Product family classification | Solenoid operated valves 2-way 2-positions normally closed |
Product family type | VEI-C |
Product family | VEI-CE-16-08A-NC |
Operating pressure, max. | 210 bar |
Ports number | 2 |
Max. flow | 40 l/min |
Positions | 2 |
Spool Poppet | Poppet type |
Type of connection | Threaded connection |
Direct - Pilot | Pilot operated |
Cavity | CA-08A-2N |
Nominal flow | 40 l/min |
Coil | D36 |
Coil integrated | To be ordered separately |
Ports | G 1/4 |
Sealing material | NBR |
Hydraulic fluid | HL, HLP |
Product family | 2 ways with emergency screw |
Product type | VEI-CE |
Weight | 0.4 kg |

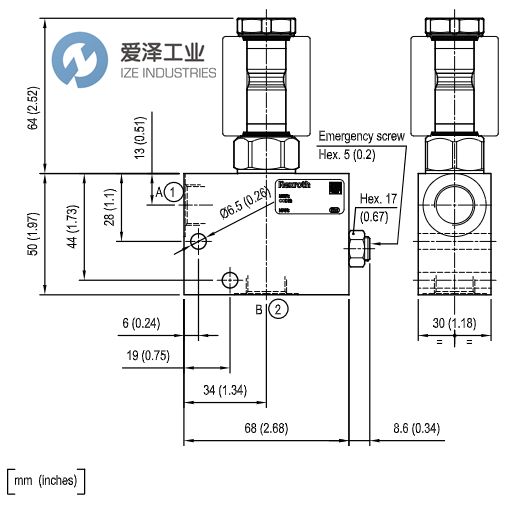

REXROTH阀VEI-CE-16-08A-NC系列规格尺寸

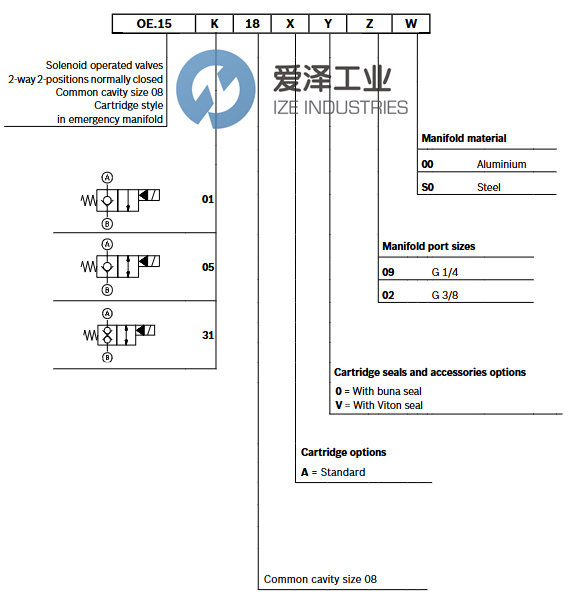

REXROTH阀VEI-CE-16-08A-NC系列选型
REXROTH阀其他常用型号：
REXROTH OE150518A009000 R930064978
REXROTH OE150118A002000 R930066280
REXROTH OE150518A002000 R930064245
REXROTH OE150518A002S00 R930066294
REXROTH OE150518A009S00 R930066262
REXROTH OE153118A002000 R930066563
REXROTH OE153118A002S00 R930066768
REXROTH OE153118A009000 R930066778
