REXROTH方向阀M-3SEW6C3X/630MG24N9K4 R900566279技术规格
TECHNICAL SPECS | |
Product attributes | |
Connection diagram | ISO 4401-03-02-0-05 |
Product family | M-.SEW6 |
Max. pressure [bar] | 630 |
Max. flow [l/min] | 25 |
Spool symbol | Symbol C |
Type of connection | Subplate mounting |
Size | 6 |
Type of actuation | with solenoid actuation |
Number of ports | 3 |
Number of switching positions | 2 |
Supply voltage | 24 VDC |
Electrical connector | Connector 3-pole (2 + PE) |
Electrical connection description | Connector 3-pole (2 + PE) according to EN 175301-803 |
Hydraulic fluid | HL,HLP,HLPD,HVLP,HVLPD,HFC |
Seals | NBR |
Weight [kg] | 1.5 |
REXROTH方向阀SEW系列介绍
特征
• 2/2、3/2 或 4/2 定向设计
• 接口形式符合 DIN 24340 A 型
• 接口模式符合 ISO 4401-03-02-0-05 和 NFPA T3.5.1 R2-2002 D03
• 带可拆卸线圈的气隙直流电磁铁
• 电磁线圈可旋转90°
• 无需打开耐压室即可更换线圈
• 电气连接为单独连接
• 手动操作，可选
• 感应式位置开关和接近传感器（非接触式）
Features
• 2/2, 3/2 or 4/2 directional design
• Porting pattern according to DIN 24340 form A
• Porting pattern according to ISO 4401-03-02-0-05 and NFPA T3.5.1 R2-2002 D03
• Air-gap DC solenoids with detachable coil
• Solenoid coil can be rotated by 90°
• The coil can be changed without having to open the pressure-tight chamber
• Electrical connection as individual connection
• Manual override, optional
• Inductive position switch and proximity sensors (contactless)

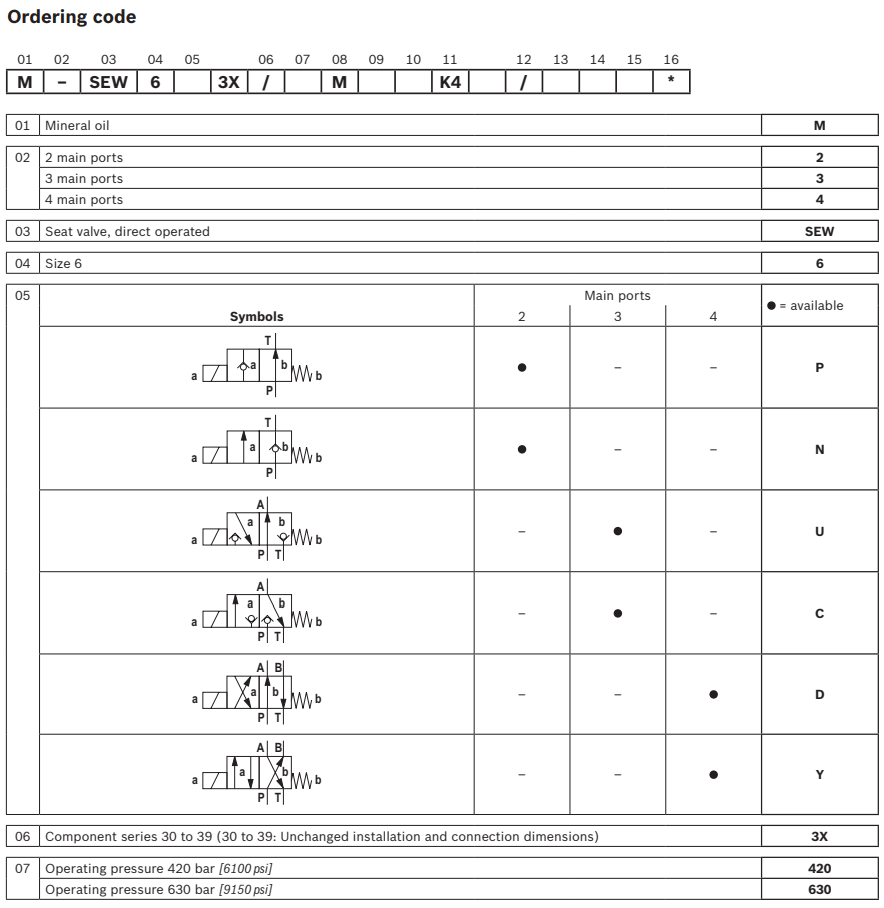

REXROTH方向阀SEW系列选型
REXROTH方向阀SEW系列其他常见型号：
REXROTH M-3SEW6C3X/420MG24N9K4 R900566273
REXROTH M-3SEW6C3X/630MG24N9K4 R900566279
REXROTH M-3SEW6U3X/420MG24N9K4 R900566283
REXROTH M-3SEW6U3X/420MG24N9K4/V R900570174
REXROTH M-3SEW6U3X/630MG24N9K4 R900566289
