ASA HYDRAULIK减震器K16S-63尺寸

ASA HYDRAULIK减震器SAE系列介绍

补偿器

SAE 1英寸至5英寸

橡胶补偿器是一种具有可旋转SAE法兰的弹性连接器。补偿器用于阻尼振荡、振动、噪音和在轴向和横向的运动。

结构设计

橡胶补偿器的表面平滑，并通过硫化工艺与橡胶部件的内外织物骨架结合。外部具有耐候性能，能够保护织物免受老化、磨损和腐蚀。橡胶部件的内部由丁腈-丁二烯橡胶（NBR）制成。由于补偿器两侧设有紧固唇口，因此无需使用额外的密封件。

用途

适用于所有矿物油产品、原油、润滑油、冷却油（-20°C至80°C，间歇最高至100°C）、润滑脂、冷水、热水（最高60°C）、水/油乳液，以及含有30%芳香族组分的燃料。用于吸入和回油管线中的操作。

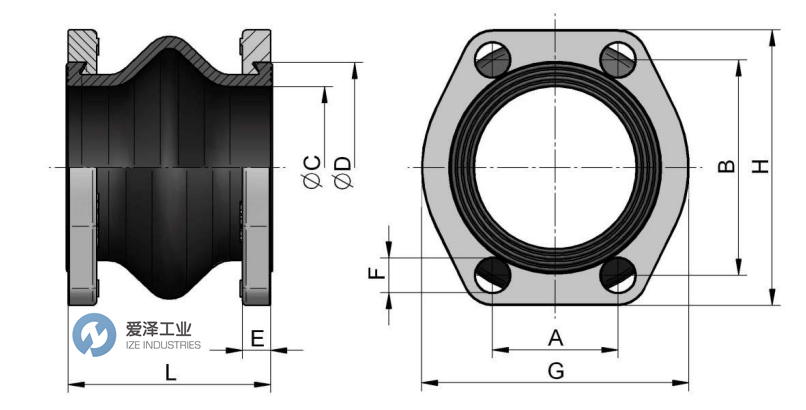

Compensator

SAE 1” to 5”

Rubber compensators are elastic connectors with turnable SAE flanges. Compensators are used for damping oscillations, vibrations, noises and movements in axial and transversal direction.

Design

Rubber compensators have a plain surface vulcanized to a fabric body (inside and outside) of the rubber part. The outside is weather resistant and protects the fabric against ageing, wear and corrosion. The interior of the rubber part consists of nitril-butadien caoutchouc (NBR). Because compensators have tightening lips on both sides, further seals are not necessary.

Use

For all mineral oil products, crude oil, lubrication oil, cooling oil (-20°C up to 80°C, intermittent 100°C), grease, cold water, warm water up to 60°C, water/oil emulsions, fuel with 30% aromatic content. For operation in suction and return lines.

ASA HYDRAULIK减震器其他常用型号：

ASA HYDRAULIK SDKSS025

ASA HYDRAULIK K16S- 25

ASA HYDRAULIK SDKSS032

ASA HYDRAULIK K16S - 32

ASA HYDRAULIK SDKSS040

ASA HYDRAULIK K16S - 40

ASA HYDRAULIK SDKSS050

ASA HYDRAULIK K16S- 50

ASA HYDRAULIK SDKSS063

ASA HYDRAULIK K16S- 63

ASA HYDRAULIK SDKSS080

ASA HYDRAULIK K16S- 80

ASA HYDRAULIK SDKSS092

ASA HYDRAULIK K16S - 92

ASA HYDRAULIK SDKSS100

ASA HYDRAULIK K16S- 100

ASA HYDRAULIK SDKSS126

ASA HYDRAULIK K16S- 125

ASA HYDRAULIK Shock absorbers NEW + ORIGINAL+ ONE YEAR WARRANTY

爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。

如果有任何关于ASA HYDRAULIK减震器K16S-63的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。

If you have any question for ASA HYDRAULIK products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.ize-industries.com.

ASA HYDRAULIK减震器K16S-63技术参数及介绍

• ASA HYDRAULIK减震器K16S-63
• ASA HYDRAULIK减震器K16S-40
• ASA HYDRAULIK减震器K16S-100
