BEI IDEACOD编码器H20EB-37-F12-SS-300-ABC-7272-SM16-28V-S技术参数

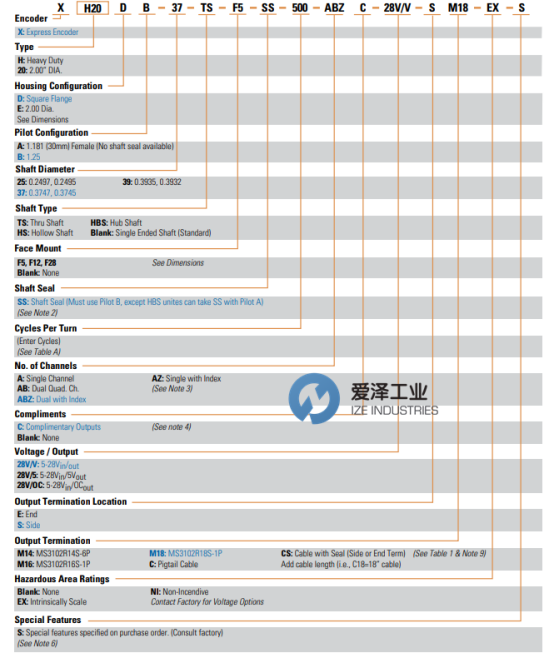

H20EB-37-F12-SS-300-ABC-7272-SM16-28V-S |
H: Heavy Duty |
E: 2.00 Dia. |
B: 1.25 |
F12=Face Mount |
37:0.3747,0.3745 |
SS: Shaft Seal (Must use Pilot B, except HBS unites can take SS with Pilot A) |
300:Enter Cycles |
AB: Dual Quad. Ch. |
C: Complimentary Outputs |
7272 |
S: Side |
M16: MS3102R16S-1P |
28V/V: 5-28Vin/out |
S: Special features specified on purchase order. (Consult factory) |
BEI IDEACOD编码器H25系列介绍及选型
The H20 is an extremely rugged encoder designed to economically fill the resolution range up to 4096 cycles per turn. This compact unit features a shock resistant disc, heavy duty bearings, and EMI shielding. The H20 conforms to NEMA 4 and 13 requirements. The H20 is also available in a hub shaft style with a flexmount for easy mounting directly to small motors. Typical applications of the H20 include machine control, process control, agricultural machinery, textile equipment, robotics, food processing, and metering.
H20是一种极其坚固的编码器，旨在经济地填充高达每圈4096周期的分辨率范围。这个紧凑的单元具有冲击耐磨盘、重型轴承和EMI屏蔽。 H20符合NEMA 4和13要求。 H20 也可用于轮毂轴带有flexmount的样式，可轻松直接安装到小型电机上。H20的典型应用包括机器控制、过程控制、农业机械、纺织设备、机器人、食品加工和计量。
BEI IDEACOD编码器H25系列其他常见型号：
BEI-IDEACOD 01039-2918
BEI-IDEACOD H20EB-HS-F12-SS-500-AB-3904R-SCS72-24V-S
BEI-IDEACOD H20EB-25-F12-SS-500
BEI-IDEACOD H20EB-25-F28-SS-500-ABZC-7272-SCS36-28V-S
BEI-IDEACOD H20EB-37-F12-SS-300-ABC-28V/V-SM16-S
BEI-IDEACOD H20EB-37-F28-SS-100-ABC-5V/V-SM16-EX
BEI-IDEACOD H20EB-37-F28-SS-64-A-3904R-SM16-12V-S
BEI-IDEACOD H20EB-37-AB-3904R-SM14-12V
BEI-IDEACOD H20EB-39-F42-SS-256-ABZ
BEI-IDEACOD H20EB-39-F28-SS-10-ABZ-24V/OCR-SM14-S
BEI-IDEACOD H20EB-37-F12-SS-600-A-5V/OCR-EM16-S
BEI-IDEACOD H20EB-25-F12-SS-500-ABZ-28V/OC-SCS96
BEI-IDEACOD H20EB-HS-F12-SS-785-AB-28V/V-SM16-S
BEI-IDEACOD H20EB-37-F12-SS-300-ABC-7272-SM16-28V-S
BEI IDEACOS Encoders NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向先进制造工业提供高端制造技术和设备。代理经营世界先进的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于BEI IDEACOD编码器H20EB-37-F12-SS-300-ABC-7272-SM16-28V-S的疑问，请随时与我们电联，（021-3100 6702），我们将尽全力解决您的问题。
If you have any question for BEI-IDEACOD products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.ize-industries.com.
BEI IDEACOD编码器H20EB-37-F12-SS-300-ABC-7272-SM16-28V-S参数介绍
