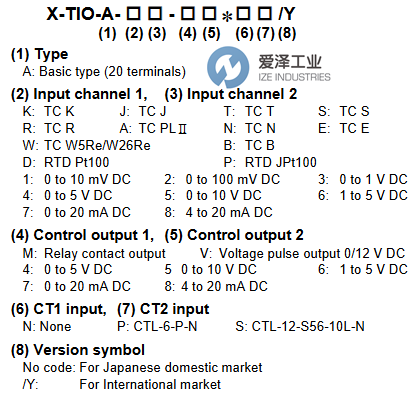

Inputs

Number   of inputs

2   points (Isolated between each channel)

Input   type

Thermocouple

K,   J, T, S, R, E, B, N (JIS-C1602-1995)
  PLII (NBS)
  W5Re/W26Re (ASTM-E988-96)

RTD

Pt100   (JIS-C1604-1997)
  JPt100 (JIS-C1604-1989, Pt100 of JIS-C1604-1981)

Voltage   (low)

0   to 10 mV DC, 0 to 100 mV DC, 0 to 1 V DC

Voltage   (high)

0   to 5 V DC, 0 to 10 V DC, 1 to 5 V DC

Current

0   to 20 mA DC, 4 to 20 mA DC (Input impedance: 250 Ω)

Sampling   cycle

25   ms

PV   bias

-Input   span to +Input span

CT   input

2   points
  0.0 to 30.0 A (CTL-6P-N) or 0.0 to 100.0 A (CTL-12-S56-10L-N)

Outputs

Number   of outputs

2   points (Isolated between input and output, and between output and power   supply)

Output   type

Relay   contact

250   V AC, 3 A (Resistive load)
  1a contact
  Electrical life 300,000 times or more (Rated load)

Voltage   pulse

0/12   V DC
  (Load resistance 600 Ω or more)

Current

0   to 20 mA DC, 4 to 20 mA DC
  (Load resistance 600 Ω or less)

Voltage

0   to 5 V DC, 0 to 10 V DC, 1 to 5 V DC
  (Load resistance 1 kΩ or more)

Control   action

Number   of controls

2   points

Control   method

Brilliant   PID control
  Reverse action or direct action is selectable

Additional   function

Autotuning   function
  Output limiter function
  Output change rate limiter function

Events

Number   of events

2   points/channel

Event   type

Temperature   event:
  Deviation high, Deviation low,
  Deviation high/low, Band,
  Process high, Process low

Heater   break alarm (HBA) function

Number   of HBA

2   points

Setting   range

0.0   to 100.0 A (0.0 A: OFF)

Additional   function

Number   of event delay times: 1 to 255 times

Control   loop break alarm (LBA) function

Number   of LBA

2   points

LBA   time

1   to 7200 seconds

LBA   deadband (LBD) setting

0   to Input span

Program   control

Number   of patterns

16   pattern max.
  (With pattern link function)

Number   of segments

16   segment/pattern max.

Time   signal output

16   point/pattern

Communications

Communication   interface

Based   on RS-485, EIA standard

Communication   protocol

RKC   communication
  (ANSI X3.28-1976 subcategories 2.5 and A4) or Modbus

Others

Power   supply voltage

21.6   to 26.4 V DC
  (Including power supply voltage variation)
  Rating: 24 V DC

Current   consumption

120   mA or less/module

Allowable   ambient temperature range

-10   to +50 ℃

Allowable   ambient humidity range

5   to 95 %RH (Non condensing)
  Absolute humidity: MAX.W.C 29 g/m3 dry air at 101.3 kPa

Installation   environment conditions

Indoor   use
  Altitude up to 2000 m

Weight

Approx.   220 g
