SWAN电导率传感器UP-CON1000 SL系列技术参数
Specifications | |
Recommended measuring range | 0.055 μS/cm to 30 mS/cm |
Accuracy (at 25°C) | ± 1% (Measuring range and accuracy when used with AMI Powercon) |
Cell constant | ~ 0.04 cm-1 (Indicated on sensor with 5 decimal places). |
Temperature sensor type | Pt1000, DIN class A |
Operating conditions | Continuous temperature: 100 °C at 6.5 bar / Max. temperature: 120 °C at 6.5 bar / Pressure: max. 30 bar at 25 °C |
Materials in contact with sample | Shaft: Stainless steel SS 316L / Electrode: Titanium / Isolation: PEEK |
Process connection & sensor mounting | SWAN slot-lock for quicksensor release in suitable flow cells or NPT ¾” |
Electrical connection | Male Plug M1 (protection degree IP67) or directly attached cable with end sleeves |
SWAN电导率传感器UP-CON1000 SL系列介绍
用于蒸汽和冷凝水应用的电导率传感器（槽锁适配器），由不锈钢和钛制成。
Conductivity sensor (slot-lock adapter) made of stainless steel and titanium for steam and condensate applications.

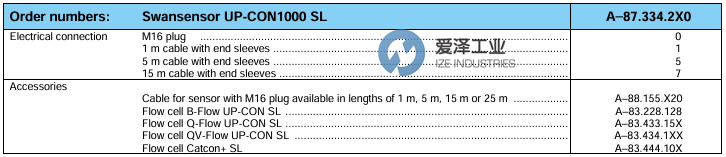

SWAN电导率传感器UP-CON1000 SL系列选型
SWAN电导率传感器UP-CON1000 SL系列其他常用型号：
SWAN A-87.334.203
SWAN A-87.334.210
SWAN A-87.334.220
SWAN A-87.334.250
SWAN A-87.334.270
SWAN A-87.334.200
SWAN Sensor NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向先进制造工业提供制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于SWAN电导率传感器A-87.334.203的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for SWAN products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.ize-industries.com.
SWAN电导率传感器UP-CON1000 SL系列A-87.334.203技术参数及介绍
