FLOW-MON流量指示器FML-20-AL-LP-3EE-320CS-12-S1-D4技术参数
SERIES AND FLOW RATE | FML20 = 20 Litres/Min |
MATERIAL OF MANUFACTURE | AL = Aluminium |
PRESSURE RATING | LP = 300psi / 20 bar maximum |
INDICATOR READ OUT | 3EE = SPDT 3 Wire Switch |
VISCOSITY AT OPERATING TEMPERATURE | 320CS |
PORT CONNECTIONS | 12 = 1 1/2” |
‘O’ RING SEAL MATERIAL | S1 = Buna (-40ºC +110ºC) |
FLOW DIRECTIONS | D4 = ↓ |
FLOW-MON流量指示器Small系列介绍
Small系列装置设计坚固、用途广泛，并且在最恶劣的环境中也极其可靠。 它们通过机械指针、开关、发射器或数字速率累加器连续监测流量，并提供本地指示，并且可以采用多种材料制造，以适应各种液体、空气和气体应用。
• 全量程精度为 +/- 3%
• 以任何测量单位进行校准
• 单刻度或双刻度选项
• 单独校准
• 简单的模块化设计
• 低压降
• 粘度高达 600cSt
• 1% 的重复性开关设定点 – 准确可靠
• 可安装在任意位置
• 防风雨外壳盒
• 能够达到指示流量上限的两倍
• 有多种材料可供选择
The small series units are designed to be robust, highly versatile and extremely reliable in the harshest of environments. They continuously monitor flow with a local indication, through a mechanical pointer, switch, transmitter or digital rate totaliser and can be manufactured in a variety of materials to suit a wide range of liquid, air and gas applications.
• +/- 3% accuracy across full range
• Calibrated in any unit of measure
• Single or dual scale options
• Individually calibrated
• Simple modular design
• Low pressure drop
• Viscosities up to 600cSt
• 1% rate of repeatability switch set point – accurate & reliable
• Installed in any position
• Weatherproof enclosure box
• Capable of twice the maximum indicated flow
• Available in a wide range of materials

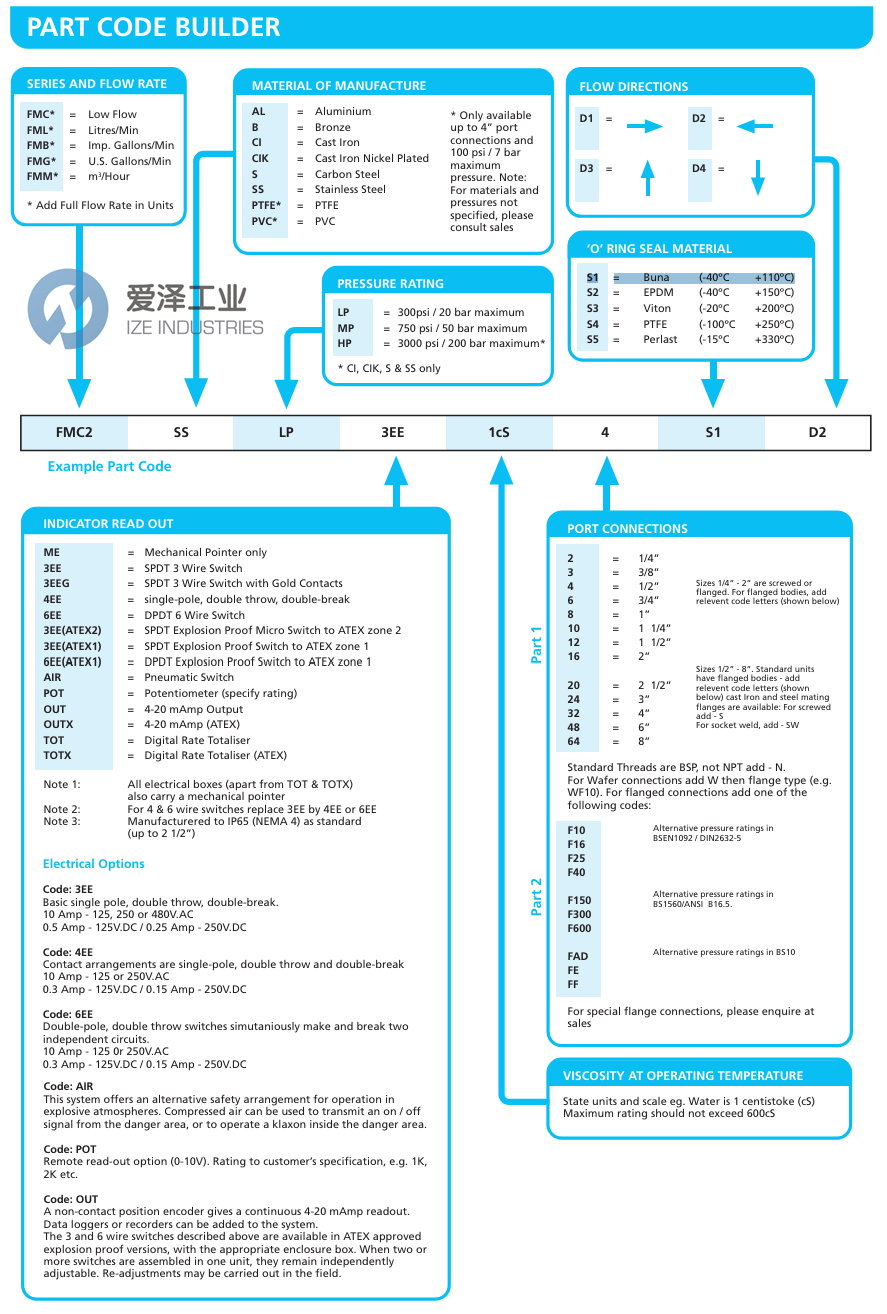

FLOW-MON流量指示器Small系列选型
FLOW-MON流量指示器Small系列其他常用型号：
FLOW-MON FML-20-AL-LP-3EE-320CS-12-S1-D4
FLOW-MON FML-20-B-LP-3EE-460CS-8-S1-D1
FLOW-MON FMM-10-CI-LP-3EE-1CS-16F16-S3-D2
FLOW-MON FML-50-B-LP-3EE-1CS-6-S1
FLOW-MON FML-40-AL-LP-3EE-220CS-8-S1-D1
FLOW-MON FML-50-B-LP-3EE-1CS-8-S1-D4
FLOW-MON FML-60-AL-LP-3EE-220CS-12-S1-D2
FLOW-MON FLOW RATE INDICATOR NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于FLOW-MON流量指示器FML-20-AL-LP-3EE-320CS-12-S1-D4的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for FLOW-MON products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
FLOW-MON流量指示器Small系列FML-20-AL-LP-3EE-320CS-12-S1-D4技术参数及选型
