TELESTAR编码器MINICOD-T系列技术参数
SPECIFICATIONS | |
Shaft | stainless steel |
Shaft loading | axial: 200 N; radial: 200 N |
Shaft rotational speed | 12.000 RPM to short cycle time; 6.000 RPM continuous; 2000 with protection shaft |
starting torque at 25°C: 0,025 Nm; 0,040 Nm with proof shaft | |
Moment of inertia | 40 g cm² |
Bearings life | 5 x 109 rev. min. Weight: ~ 0,56 kg |
output frequency | from 0 to 100 kHz |
Supply current without load | 150 mA max. |
Flange | aluminium non corroding |
Housing | Aluminium painted with inhibithing treatment 180° C |
Operating temperature range | -10°C ÷ +70°C |
Storage temperature range | -30°C ÷ +85°C |
Relative humidity | 98%; RH without condensing |
Vibrations | 10 g (From 10 up to 2.000 Hz) |
Schock | 20 g (for 11 ms) |
Class protection | IP 64 |
TELESTAR编码器MINICOD-T系列介绍
Minicod-T是一款全金属增量式编码器，专为重型应用而设计。该编码器采用实心轴，最高分辨率可达9,000脉冲/转。
The Minicod-T is an all-metal incremental encoder manufactured by Telestar, designed for heavy-duty applications. This encoder features a solid shaft and a maximum resolution of 9,000 pulses/revolution.

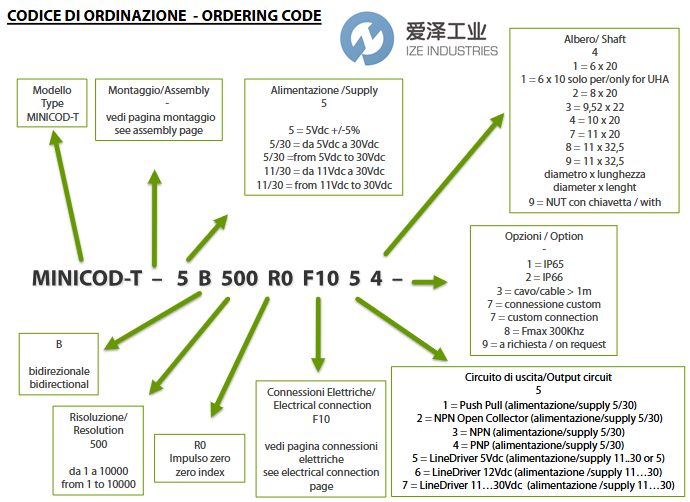

TELESTAR编码器MINICOD-T系列选型
TELESTAR编码器MINICOD-T系列其他常用型号：
TELESTAR T40398869
TELESTAR TS 11/30 B360R1F742/7
TELESTAR TI-65250300
TELESTAR T40096382
TELESTAR T1-62200304
TELESTAR T40384537
TELESTAR TI-62200304
TELESTAR T-62040301
TELESTAR T40388679
TELESTAR T40384665
TELESTAR T40380496
TELESTAR encoder NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于TELESTAR编码器T40398869的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for TELESTAR products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.ize-industries.com.
TELESTAR编码器MINICOD-T系列T40398869技术参数及介绍
