GOOCH HOUSEGO开关QS系列技术参数
General Specifications | |
Interaction material: | Fused Silica |
Wavelength: | 1064nm |
AR coating reflectivity: | < 0.2% per surface |
Damage threshold: | > 1GWcm-2 |
Transmission (single pass): | > 99.6% |
Static insertion loss: | ≤ 6% at 50W laser power |
VSWR: | < 1.2:1 (<1.4:1 at 50W RF power) |
RF power rating (maximum): | 50W cw for Compressional acoustic mode |
Water flow rate: | > 190cc / minute |
Water-cooling channel material: | Aluminium (de-ionised water is strongly recommended) |
Recommended water temperature: | +22oC to +32oC |
Thermal switch cut-off: | +55oC +/- 5oC |
Storage temperature: | 0 to +50degC |
GOOCH HOUSEGO开关QS系列介绍
水冷声光 Q 开关，用于高功率灯或二极管泵浦 Nd:YAG 激光器。
该 Q 开关将熔融石英与高质量光学精加工和内部抗反射涂层相结合，具有很低的插入损耗和高损伤阈值。 其设计特性和可重复的制造工艺可实现高达 100W 的射频功率（对于剪切模式选项）。
标准选项包括射频频率（24 至 68MHz）、有源孔径（1.6 – 8.0mm）、声学模式（线性偏振的压缩、随机偏振的剪切）的选择。 可根据要求提供定制选项，包括替代机械设计和波长。
A water-cooled Acousto-Optic Q-Switch for use in high power lamp or diode pumped Nd:YAG lasers.
Combining top grade fused silica with high quality optical finishing and in-house anti-reflection coatings, this Q-Switch exhibits very low insertion loss and high damage threshold. It’s design characteristics and repeatable manufacturing process enable RF powers of up to 100W (for shear mode options).
Standard options include a choice of RF frequency (24 to 68MHz), active apertures (1.6 – 8.0mm), acoustic modes (compressional for linear polarisation, shear for random polarisation). Custom options, including alternative mechanical designs & wavelengths are available upon request.

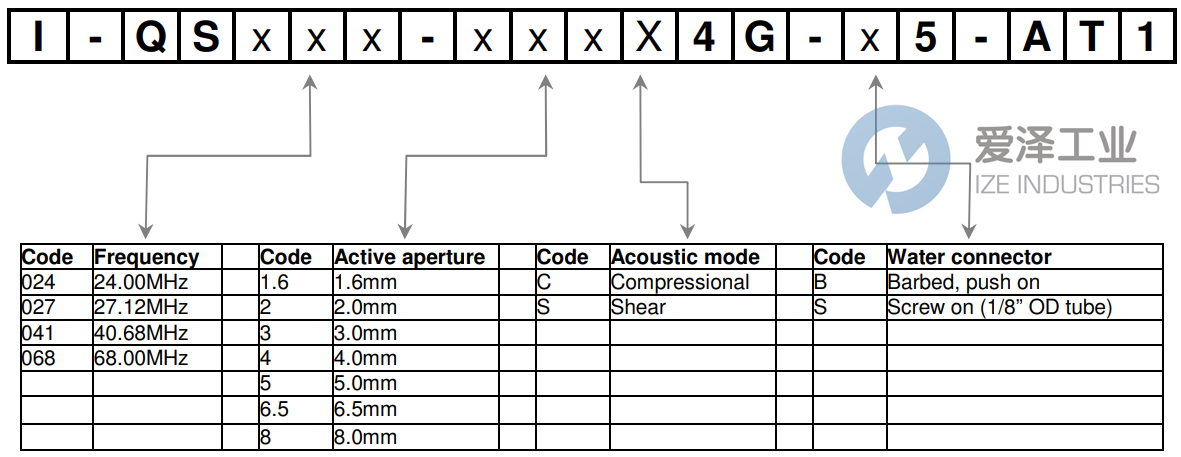

GOOCH HOUSEGO开关QS系列选型
GOOCH HOUSEGO开关QS系列其他常用型号：
GOOCH HOUSEGO I-QS027-4S4G-B5-AT1
GOOCH HOUSEGO I-QS027-4C10G-B5-LL4
GOOCH HOUSEGO I-QS027-4S4G-N5-ST1
GOOCH HOUSEGO I-QS027-4D10G-B5
GOOCH HOUSEGO I-QS027-4S4V2-x5-ST1
GOOCH HOUSEGO I-QS027-5S4G-U5-ST1
GOOCH HOUSEGO I-QS027-4S4G-U5-ST1
GOOCH HOUSEGO I-QS027-4S4G-B5-RS5
GOOCH HOUSEGO I-QS027-4S4G-B5
GOOCH HOUSEGO Q-Switch NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于GOOCH HOUSEGO开关I-QS027-4S4G-B5的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for GOOCH HOUSEGO products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
GOOCH HOUSEGO开关QS系列I-QS027-4S4G-B5技术参数及选型
