HYPERTAC连接器REP606系列技术参数
Contact Arrangements | 2, 6, 12 |
Contact Diameter | Size 16: Ø 1.50 mm (0.059 in) |
Weight (contacts included) | REP606 with contacts: 19.3g |
Coding Configurations Polarisation | Cable-to-cable, clip locking, panel mount 180° |
Materials & Plating | |
Contacts | Gold over nickel plating |
Insulator | Polycarbonate |
Seal & Grommet | Overmoulded silicone |
Mechanical & Environmental | |
Contact Retention Force | > 70 N |
Contact Retention Force PCB version | > 20 N |
Clip Locking Retention Force | >110 N |
Mating Cycles | > 500 cycles |
Temperature Range | -75 °C to +100 °C (for crimp versions) |
Vibration | Category 2 (bogie installation) |
Flammability | I2 F1 |
Salt Spray | > 96 hours |
Fluid Resistance | Cleaning substances, gasoline/oil, acids, |
IP Level | IP66, IP67 |
Electrical | |
Current Rating | 18 A |
Voltage Rating | 230 V (400 V with plastic dummy contacts) |
Dielectric Withstanding Voltage | 2725 V |
Contact Resistance | ≤ 2.5 mΩ |
Insulation Resistance | ≥ 5x103 MΩ |
HYPERTAC连接器REP系列介绍
REP 系列易于使用，可快速插接。REP 面板和电缆连接器是一种更具成本效益的互连系统，可满足铁路应用中对简单可靠的连接器解决方案的持续需求。提供电线连接或 PCB 安装选项的全塑料解决方案，可提供快速组装安装，无需额外的安装硬件。需要时，电缆插座连接器可与电缆插头连接器配合，以实现电缆到电缆的解决方案。该系列符合法国和欧洲铁路标准。这些连接器可作为一个包覆成型的塑料部件，以节省组装时间。
REP series is easy to use for quick mating. The REP panel and cable connectors are a highly cost-effective interconnect system, which solves the constant need for simple and reliable connector solutions in rail applications. A full plastic solution offered in either wire attachment or PCB mounting options to provide rapid assembly installation without requiring additional mounting hardware. Cable receptacle connectors are available to mate with the cable plug connectors for cable-to- cable solutions when needed. The series is qualified to French and European rail standards. The connectors are available as one overmolded plastic part to save assembly time.

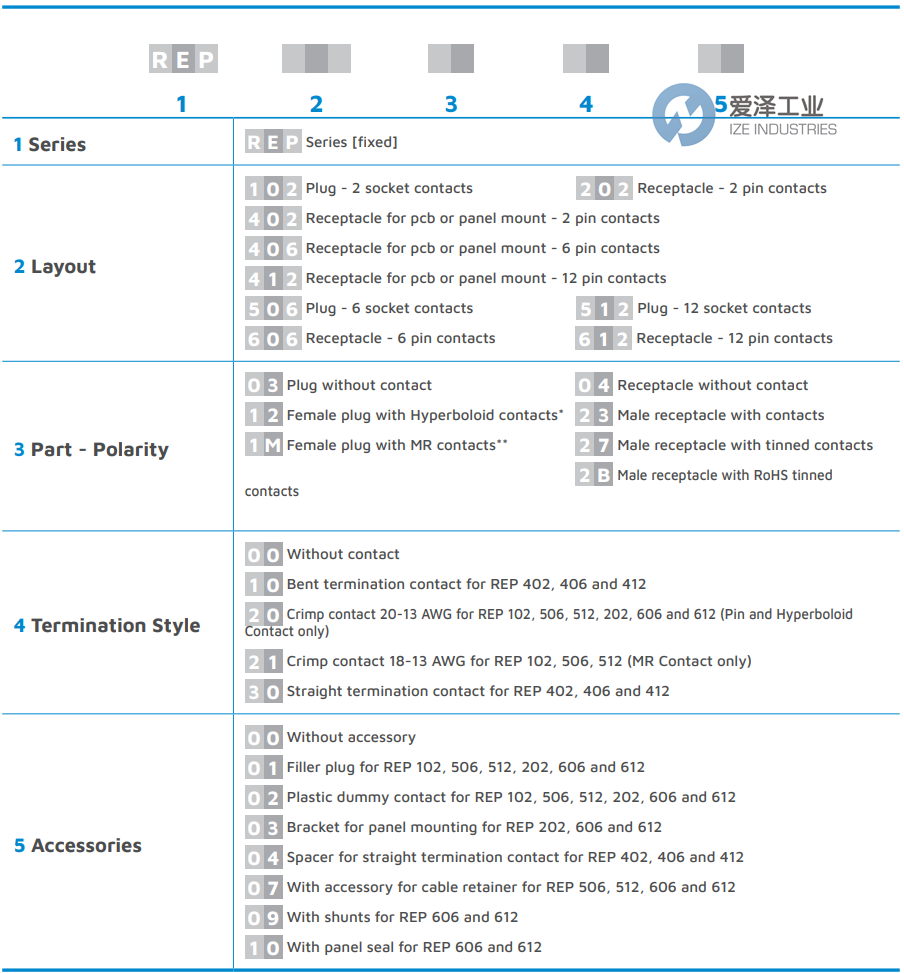

HYPERTAC连接器REP系列选型
C
HYPERTAC连接器REP系列其他常用型号：
HYPERTA REP102030000
HYPERTAC REP202040000
HYPERTAC REP206040000
HYPERTAC REP606040000
HYPERTAC REP102122000
HYPERTAC REP606232010
HYPERTAC REP206232000
HYPERTAC REP206232001
HYPERTAC REP206230320
HYPERTAC REP206230320V2
HYPERTAC REP206230320V1
HYPERTAC CONNECTOR NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于HYPERTAC连接器REP606232010的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for HYPERTAC products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
