BELIMO风阀执行器BFL230技术参数
Electrical data | |
Nominal voltage | AC 230 V |
Nominal voltage frequency | 50/60 Hz |
Nominal voltage range | AC 198...264 V |
Power consumption in operation | 3W |
Power consumption in rest position | 0.9 w |
Power consumption for wire sizing | 6.5 VA |
Power consumption for wire sizing note | Imax4A @ 5 ms |
Auxiliary switch | 2x SPDT |
Switching capacity auxiliary switch | 1 mA..3 A (0.5 A inductive), DC 5 V..AC 250V (II, reinforced insulation) |
Switching points auxiliary switch | 5° / 80° |
Connection supply / contro . | Cable 1 m, 2 x 0.75 mm2 (halogen-free) |
Connection auxiliary switch | Cable 1 m, 6x 0.75 mm2 (halogen-free) |
Functional data | |
Torque motor | 4 Nm |
Torque fail-safe | 3 Nm |
Direction of motion motor | selectable by mounting L/R |
Manual override | with position stop |
Angle of rotation | Max.95° |
Running time motor | <60s/ 90° |
Running time fail-safe | 20 s @ -0...55.C / <60 s @ 30...-10C |
Sound power level, motor | 43 dB(A) |
Sound power level, fail-safe | 62 dB(A) |
Mechanical interface | Form fit 12x12 mm, continuous hollow shaft |
Position indication | Mechanically, with pointer |
Service life | Min.60'000 safety positions |
Safety data | |
Protection class IEC/EN | II, reinforced insulation |
Protection class auxiliary switch IEC/EN | II, reinforced insulation |
Degree of protection IEC/EN | IP54 |
Degree of protection note | IP protection in all mounting positions |
EMC | CE according to 2014/30/EU |
Low voltage directive | CE according to 2014/35/EU |
Certification IEC/EN | IEC/EN 60730-1 and IEC/EN 60730-2-14 |
Mode of operation | Type 1.AA.B |
Rated impulse voltage supply / control | 4 kV |
Pollution degree | 3 |
Ambient temperature normal operation | 30..55°C |
Ambient temperature safety operation | The safety position will be attained up to max.75°C |
Storage temperature | -40...80°C |
Ambient humidity | Max. 95% RH, non-condensing |
Servicing | maintenance-free |
Weight | |
Weight | 0.99 kg |
BELIMO风阀执行器BFL230产品介绍
执行器在拉紧复位弹簧的同时将阻尼器移动到操作位置。 当电源电压中断时，阻尼器通过弹簧能量返回到安全位置。
无需电源，执行器可以手动操作并固定在任何需要的位置。 它可以通过施加电源电压手动或自动解锁。
The actuator moves the damper to the operating position at the same time as tensioning the return spring. The damper is turned back to the safety position by spring energy when the supply voltage is interrupted.
Without power supply, the actuator can be operated manually and fixed in any required position. It can be unlocked manually or automatically by applying the supply voltage.

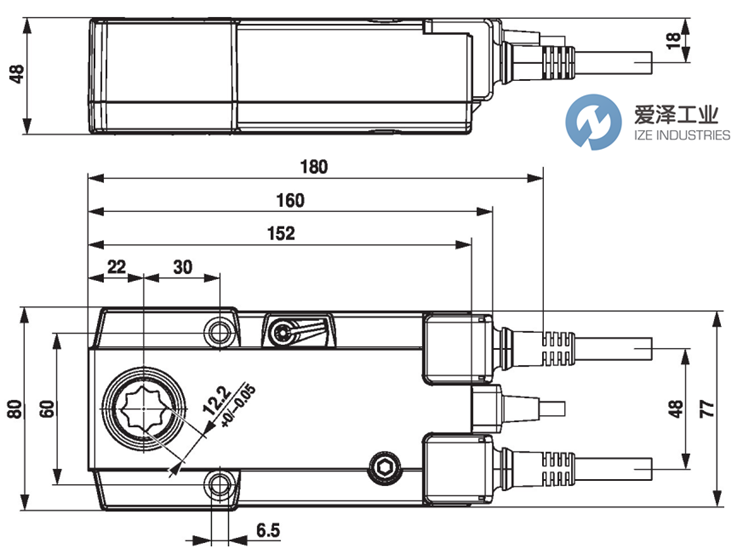

BELIMO风阀执行器BFL230技术尺寸
