ROSS阀DM2DXA5XA2X技术参数
Code | DM2DXA5XA2X |
PRODUCT | DM2D |
THREAD | X = N/A (no base) |
REVISION LEVEL | A = Size 4, 8, 12, 30 |
BASIC SIZE | 5 = 8 |
BASE PORT SIZE | X = Valve only (less base) |
VOLTAGE | A = 24 volts DC |
RESET TYPE | 2 = SOLENOID |
STATUS INDICATOR | X = NO |
ROSS阀DM2D系列介绍
ROSS DM2® D系列双阀具有两个阀元件，由两个电磁导阀独立控制。两个阀元件共享共同的入口、出口和排气端口。当先导阀同时通电时，阀芯动作，使阀门作为 3/2 常闭阀发挥作用。
如果其中一个阀元件未与另一个阀元件同步打开或关闭，则阀门进入故障状态，排出下游空气并将残余出口压力保持在小于入口供应的 1%。这是 ROSS DM2® D 系列设计的一个重要安全特性。阀元件冗余提供了一个额外的安全系数，因为在同一循环中两个阀元件发生故障的可能性被认为是极小的。 DM2® 阀还有一个集成到阀元件中的内部监视器。如果阀门运行异常，监控器将锁定阀门并防止进一步运行，直到采取纠正措施为止。
A ROSS DM2® Series D double valve has two valve elements independently controlled by two solenoid pilots. The two valve elements share common inlet, outlet, and exhaust ports. When the pilot valves are simultaneously energized, the valve elements operate so that the valve functions as a 3/2 normally closed valve.
If one of the valve elements does not open or close synchronously with the other, the valve goes into a faulted condition, exhausts downstream air and keeps residual outlet pressure to less than 1% of inlet supply. This is an important safety characteristic of the ROSS DM2® Series D design. Valve element redundancy provides an additional safety factor, as the likelihood of a malfunction in both valve elements in the same cycle is considered extremely remote. DM2® valves also have an internal monitor that is integrated into the valve elements. Should the valve operate abnormally, the monitor will lock-out the valve and prevent further operation until corrective action is taken.

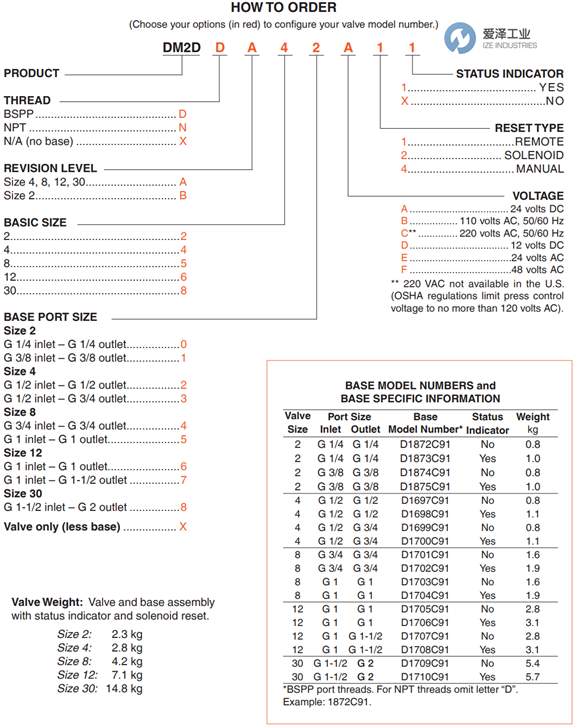

ROSS阀DM2D系列选型
ROSS阀DM2D系列其他常用型号：
ROSS DM2DXA5XA2X
ROSS DM2DDA54B2X
ROSS DM2DDA54B4X
ROSS DM2DDA54B41
ROSS DM2DDA67B41
ROSS DM2DNA54A1X
ROSS DM2DNA54A21
ROSS DM2DNA54A2X
ROSS DM2DNA54A41
ROSS DM2DNA54A4X
ROSS DM2DNA54B11
ROSS DM2DNA54B1X
ROSS DM2DNA54B2X
ROSS DM2DNA54B41
ROSS DM2DNA54B4X
ROSS DM2DDB20A41
