SKF流线监控器FL15系列技术参数
Technical data | |
Flow meter type | FL15 |
Flow rate | 0,1–15,0 l/min (0.2–30.0 pt/min) |
Group size | 2, 4, 6, 8, 10 flow meters |
Viscosity range | 32–1 000 mm2/s |
Operating pressure (max.) | 10 bar (145 psi) |
Operating temperature | 0 to + 65 °C (+32 to 150 °F) |
Protection class | IP 65 |
Power supply | 20–36 V DC |
Power consumption | 5 W |
Alarm relay | Potential free contact; max. load 30 V DC / 1 A, 120 V AC / 1 A, resistive load |
Inlet connections | BSPP G 1 or NPT 1 |
Outlet connections | BSPP G 1/2 or NPT 1/2 |
SKF流线监控器FL系列介绍
油循环润滑系统的流量控制和监测
SKF 流线监控器用于划分、测量和控制油循环润滑系统中的流量。三种不同的流量计尺寸可以控制和监测 0.1 至 100 l/min 的流量，工作粘度为 32 至 1000 mm 2 /s。流量计单独运行，可以单独编程和调整。无论油温和粘度如何变化，SKF 流线监控器都能提供准确的结果。可以进行计算机配置和远程监控。监控模块可提供通用警报、每个润滑点和过程控制接口的单独警报。
Flow rate control and monitoring for oil circulation lubrication systems
The SKF Flowline Monitor is used to divide, measure and control the flow rate in oil circulation lubrication systems. Three different flow meter sizes enable control and monitoring of 0,1 to 100 l/min flows with operating viscosities from 32 to 1000 mm2/s. The flow meters operate individually and can be programmed and adjusted separately. Regardless of oil temperature and viscosity changes, the SKF Flowline Monitor provides accurate results. Computer configuration and remote monitoring are possible. Monitoring modules are available offering common alarms, individual alarms for each lubrication point and interfaces to process controls.

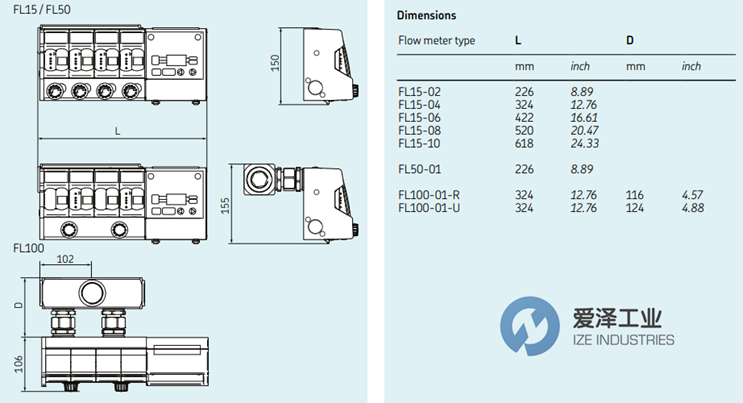

SKF流线监控器FL系列技术尺寸
SKF流线监控器FL系列选型
SKF流线监控器FL系列其他常用型号：
SKF FL15-02-R
SKF FL15-04-R
SKF FL15-06-R
SKF FL15-08-R
SKF FL15-10-R
SKF FL 50-R
SKF FL 50-02-R
SKF FL100-01-R
SKF FL15-02-R-CAN
SKF FL15-04-R-CAN
SKF FL15-06-R-CAN
SKF FL15-08-R-CAN
SKF FL15-10-R-CAN
SKF FL 50-R-CAN
SKF FL 50-02-R-CAN
SKF FL100-01-R-CAN
SKF Flowline Monitor NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于SKF流线监控器FL15-02-R的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for SKF products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
SKF流线监控器FL系列FL15-02-R技术参数及选型
