NVENT RAYCHEM机械温控器E507S-LS技术参数
Enclosure | TYPE 4, 7, 9, lacquer-coated castaluminum housing, stainless steel hardware |
Entries | One 3/4-in (19 mm) NPT conduit hub |
Set point range | 25°F to 325°F (–4°C to 163°C) |
Sensor exposure limits | –40°F to 420°F (–40°C to 215°C) |
Housing exposure limits | –40°F to 140°F (–40°C to 60°C) |
Switch | SPDT |
Electrical rating | 22 A at 125 / 250 / 480 Vac |
Accuracy | ±6°F (±3.3°C) |
Deadband | 2°F to 12°F (1.1°C to 6.7°C) above actuation temperature |
Setpoint repeatability | ±3°F (±1.7°C) |
Sensor type | Fluid-filled (silicone) bulb and 9 ft (2.7 m) capillary |
Sensor material | 300 series stainless steel |
Screw terminals, 10–14 AWG (2–5 mm2) |
NVENT RAYCHEM机械温控器E507S-LS产品介绍
nVent RAYCHEM E507S-LS 恒温器设计用于控制危险场所的伴热系统。E507S-LS可感应管道或罐壁温度，可用于控制单个伴热回路或作为切换多个伴热回路的接触器的先导控制。它还可用于指示低温或高温报警条件。
特点与优势
安装和操作简单，通过 3/4"/19 mm NPT 导管集线器引入单根电缆
节能、线路感应控制温控器
可调设定点：25 °F 至 325 °F/–4 °C 至 163 °C
电气额定值和开关：125/250/480 VAC 时 22 A，SPDT 开关
外壳：NEMA 4、7、9 涂漆铸铝外壳，不锈钢硬件
在长寿命期间可靠
The nVent RAYCHEM E507S-LS thermostat is designed for controlling heat-tracing systems in hazardous locations. The E507S-LS senses pipe or tank wall temperatures and can be used to control a single heat-tracing circuit or as a pilot control of a contactor switching multiple heat-tracing circuits. It can also be used to indicate low-temperature or high-temperature alarm conditions.
Features & Benefits
Simple to install and operate, single cable entry through 3/4"/19 mm NPT conduit hub
Energy saving, line sensing control thermostat
Adjustable set point: 25 °F to 325 °F/–4 °C to 163 °C
Electrical rating and switch: 22 A at 125/250/480 VAC, SPDT switch
Enclosure: NEMA 4, 7, 9 lacquer-coated cast aluminum housing, stainless steel hardware
Reliable during long life

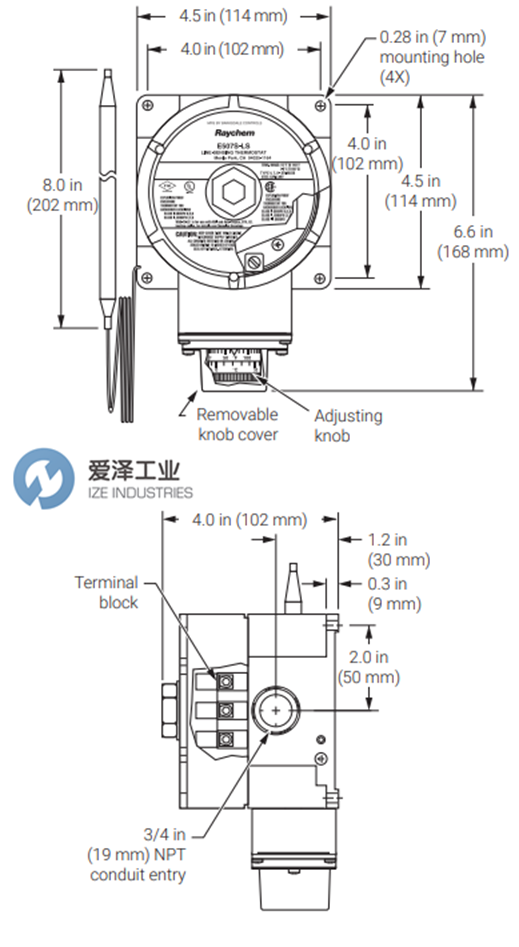

NVENT RAYCHEM机械温控器E507S-LS技术尺寸
NVENT RAYCHEM机械温控器常用型号：
NVENT RAYCHEM E507S-LS
NVENT RAYCHEM AMC-1A
NVENT RAYCHEM AMC-1B
NVENT RAYCHEM AMC-1H
NVENT RAYCHEM E507S-2LS-2
NVENT RAYCHEM AMC-2B-2
NVENT RAYCHEM Mechanical Thermostat NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于NVENT RAYCHEM机械温控器E507S-LS的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for NVENT RAYCHEM products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
NVENT RAYCHEM机械温控器E507S-LS技术参数及尺寸
