ACCU-CODER编码器25T-34SJ-1024NV1DHV-SMX-S3技术参数
MODEL | 25T: Thru-Bore |
BORE SIZE | 34: 3/4", 0.750" |
MOUNTING | SJ: 3.50" to 8.10" B.C. (8.5" C-face) Tether Arm Kit |
CYCLES PER REVOLUTION | 1024 |
N | |
INPUT VOLTAGE | V1: 5 to 28 VDC |
NUMBER OF CHANNELS | D Reverse Quadrature A & B with Index ( Channel B Leads A ) |
OUTPUT TYPE | HV: Line Driver |
CONNECTOR TYPE | SMX: 10-pin MS |
SEALING | S3: IP66 |
ACCU-CODER编码器25T/H系列介绍
25T型具有 2.5” 编码器中较大的通孔，可直接安装在高达 1.125" (28 mm) 的轴上。这款工业级编码器的分辨率高达 10,000 CPR，频率高达 1MHz。强度编码器非常适合快速旋转的电机。
25T型采用 EPC 专有的下一代 Opto-ASIC 传感器，可提供准确度和精确计数。注塑外壳由 EPC 定制的尼龙复合材料制成，带有“散热片”凹槽，可以承受运动控制行业的极端高温。
耐腐蚀选项有通孔或盲孔，采用 304 不锈钢轴环和安装硬件，以及耐腐蚀压盖或电缆。
• 薄型 2.5 英寸 Opto-ASIC 编码器 (2.0 英寸)
• 标准孔径范围为 0.25” 至 1.125”
• 公制孔径范围为 6 mm 至 28 mm
• 适用于 2.0" 至 3.5" 编码器的单一替换解决方案
• 分辨率达 10,000 CPR，频率达 1 MHz
• 多种灵活的安装选项
• 符合 RoHS 标准
• 提供耐腐蚀选项
The Model 25T features the largest thru-bore available in a 2.5” encoder, and can mount directly on shafts as large as 1.125" (28 mm). With resolutions of up to 10,000 CPR, and frequencies of up to 1MHz, this industrial-strength encoder is perfect for fast revving motors.
The Model 25T features the next generation of EPC's proprietary Opto-ASIC sensor, which provides superior accuracy and precision counts. The injection molded housing, made from EPC's custom blend of nylon composites, is grooved with "cooling fins" and can take the extreme heat of the motion control industry.
The corrosion-resistant option, available in thru-bore or blind hollow bore, features 304 stainless steel shaft collar and mounting hardware, as well as corrosion-resistant gland or cable.
• 2.5" Opto-ASIC encoder with a low profile (2.0”)
• Standard bore sizes ranging from 0.25” to 1.125”
• Metric bore sizes ranging from 6 mm to 28 mm
• Single replacement solution for 2.0" to 3.5" encoders
• Resolutions to 10,000 CPR, frequencies to 1 MHz
• Versatile flexible mounting options
• RoHS compliant
• Available with corrosion-resistant option

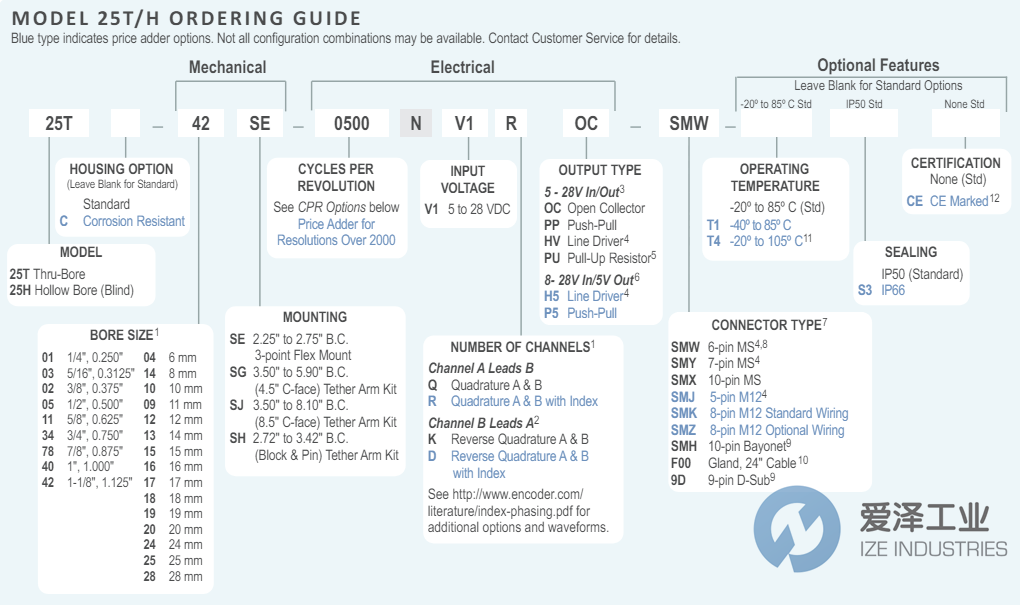

ACCU-CODER编码器25T/H系列选型
ACCU-CODER编码器25T/H系列其他常用型号：
ACCU-CODER 25T-34SJ-1024NV1RHV-SMX-S3
ACCU-CODER 25T-40SJ-1024NV1DHV-SMH-T4S3
ACCU-CODER 25T-34SJ-1024-NV1-DHV-SMX-S3
ACCU-CODER 25T-40SJ-5000NV1DHV-SMX-S3
ACCU-CODER 25T-40SH-3600NV1DHV-SMX-S3
ACCU-CODER 25T-20SE-1024NV1RHV-SMK
ACCU-CODER 25T-11SE-0060-N-V1-R-OC-SMJ
ACCU-CODER 25T-20SE-1024NV1QOC-SMK-S3
ACCU-CODER 25T-40SJ-10000NV1RHV-SMX-S3
ACCU-CODER 25T-40SJ-2048NV1RHV-SMX-S3
ACCU-CODER 25T-34SJ-1024NV1DHV-SMX-S3
