ACCU-CODER编码器725I-S-S-1000-R-OC-1F-N-S-Y技术参数
Code | 725I-S-S-1000-R-OC-1F-N-S-Y |
MODEL | 725 = Size 25 (2.5") |
HOUSING STYLE | I = Heavy duty industrial with internal flex mount |
SHAFT SIZE | S = 3/8", 0.375" (standard) |
OPERATING TEMPERATURE | S = 0° to 70° C |
CYCLES PER REVOLUTION | 1000 |
NUMBER OF CHANNELS | R =Channel A Leads B, Quadrature A & B with Index |
OUTPUT TYPE | OC = 5 - 28V In/Out, Open Collector |
MAXIMUM FREQUENCY | 1 = Standard 100 kHz |
MOUNTING | F = Flange |
SEALING | N = No seal |
CONNECTOR LOCATION | S = Side |
CONNECTOR TYPE | Y = 7-pin MS |
ACCU-CODER编码器725系列介绍
725 Accu-Coder® 光轴编码器专为应对工业环境的挑战而设计。 即使采用坚固的工业封装，这款尺寸 25 编码器仍然具有每转分辨率高达 30,000 周期的性能。 725 型提供法兰和伺服安装选项，并提供两种独特的外壳样式：标准外壳 (N) 和工业外壳 (I)。 坚固的标准外壳将内部电子设备与外部环境的冲击和压力隔离，而超重型工业外壳则具有完全隔离的内部编码器单元。 通过使用内部柔性安装座来隔离该装置，以保护编码器免受严重的轴向和径向轴负载的影响，从而延长轴承寿命。 对于承受连续侧向负载的应用（例如使用测量轮、滑轮或链条和链轮驱动编码器的应用），推荐使用工业外壳解决方案。
特征
• 标准尺寸 25 包装 (2.5" x 2.5")
• 每转高达 30,000 个周期
• 标准和工业外壳
• 伺服和法兰安装
• 提供IP67 密封
The Model 725 Accu-Coder® optical shaft encoder is specifically designed for the challenges of an industrial environment. Even with its tough, industrial package, this Size 25 encoder still has the performance to reach resolutions up to 30,000 cycles per revolution. The Model 725 offers both flange and servo mounting options, and is available in two distinctive housing styles: Standard Housing (N) and Industrial Housing (I). The rugged Standard Housing isolates the internal electronics from the shock and stress of the outer environment, while the extra heavy-duty Industrial Housing features a fully isolated internal encoder unit. Isolating the unit prolongs bearing life by using an internal flexible mount to protect the encoder from severe axial and radial shaft loading. The Industrial Housing is the recommended solution for applications subject to continuous side loads, such as those that drive the encoder with a measuring wheel, pulley, or chain and sprocket.
FEATURES
• Standard Size 25 package (2.5" x 2.5")
• Up to 30,000 CPR
• Standard and industrial housings
• Servo and flange mounting
• IP67 sealing available

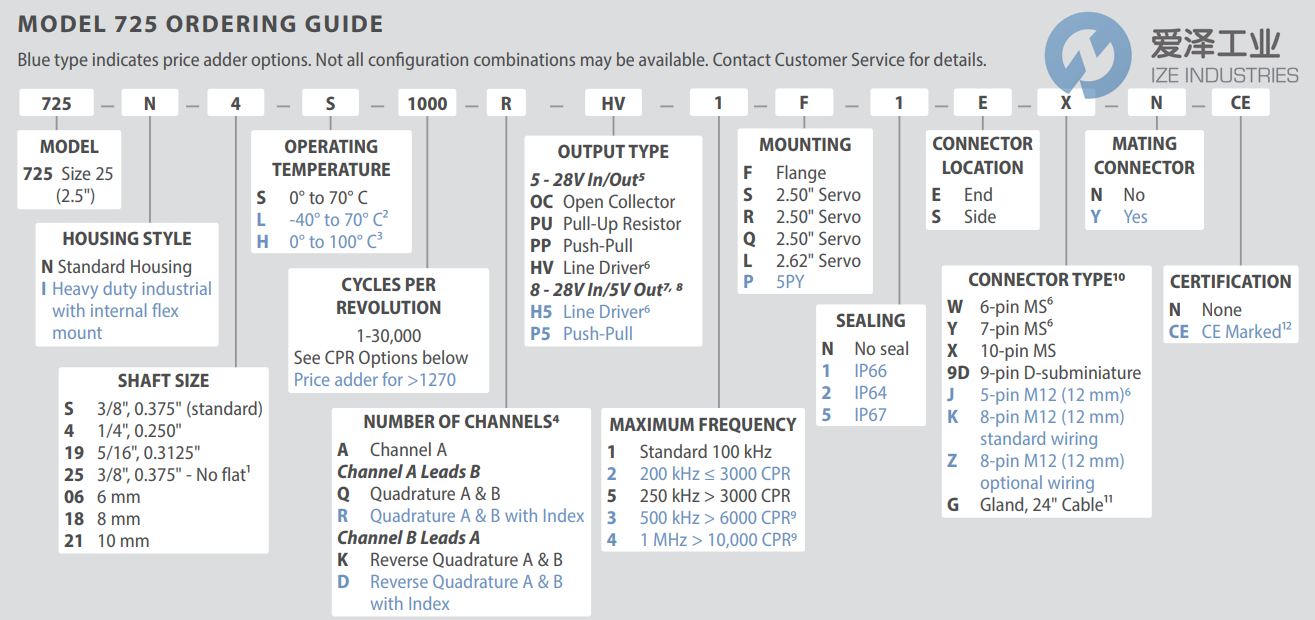

ACCU-CODER编码器725系列选型
ACCU-CODER编码器725系列其他常用型号：
ACCU-CODER 725N-S-S-0500-Q-HV-1-F-N-EY-Y-N
ACCU-CODER 725I-S-S-0360-R-OC-1-F-N-SY-N-N ST14-5-C
ACCU-CODER 725I-SS-2540-Q-HV-2-F-1-SX-N-CE
ACCU-CODER 725N-S-S-0045-A-OC-1-S-1-SY-Y-N
ACCU-CODER 725N-S-S-5000-Q-HV-5-F-N-SY-Y-CE
ACCU-CODER 725N-S-S-1024-R-H5-1-S-1-SX-N-N
ACCU-CODER 725N-S-S-0025-Q-OC-1-F-N-SY-Y-N
ACCU-CODER 725N-S-S-1024-R-HV-1-F-N-SX-Y-CE
ACCU-CODER 725I-S-S-1000-R-HV-1-S-N-S-Y-N
ACCU-CODER 725-S-S-3000-Q-HV-1-S-1-SK-N-N
ACCU-CODER 725N-S-S-0045-A-OC-1-S-1-S-Y-N
ACCU-CODER 725I-S-S-6000-Q-HV-2-F-1-SX-Y-CE
ACCU-CODER 725I-S-S-1000-R-OC-1F-N-S-Y
ACCU-CODER ENCODER NEW + ORIGINAL+ ONE YEAR WARRANTY
