API液位开关TLA系列技术参数
Technical specifications | |
Output signal: | |
a) Current: | 7mA/14mA |
Repetition of actuation level: | Vertical installation: 3 mm |
Power supply voltage: | 18 – 30 V DC |
Power consumption: | less than 0,5 W |
Ambient operating temperature: | -40°C to +85°C, (-55°C to +85°C), for IS -40°C to +57°C |
Product temperature: | -55°C to +100°C |
Length of rod: | Length on request |
Relative ambient humidity: | up to 100% at 50°C |
Response time: | 1 sec. subject to actual programming |
Protection rate: | IP67 |
MTBF: | 50000 hrs |
Housing type: | Stainless steel AISI 316L |
Wetted parts: | Stainless steel AISI 316L (others on request) |
Process connection: | |
a) Flange: | From DN 40 |
Ex Protection: | Ex ia IIC T5(T6) |
API液位开关TLA系列介绍
TLA用于检测储罐中的高液位 (95%) 和高高液位 (98%)。 TLA安装在油轮、天然气运输船、浮式储存库、FSO、FPSO、陆上石油、石油产品和液化气储罐的甲板上。 TLA基于与 UTS相同的声波专利技术，具有高水平的准确性、可靠性和可定制性。 TLA是一种两点液位开关，其警报级别由杆的长度定义，可根据要求生产。 内置测试按钮用于在填充液体之前根据船级社的要求执行功能测试。
The TLA is used for the detection of high (95%) and high-high (98%) levels in tanks. The TLA is installed on the deck of tankers, gas carriers, floating storages, FSO, FPSO, onshore storage tanks for oil, petroleum products and liquefied gas. Build on the same patented acoustic wave technology as UTS, TLA features a high level of accuracy, reliability and customizability. The TLA represents a two-point level switch with alarm levels defined by the length of rods, which are produced on request. Built-in test buttons are used for performing a functionality test before filling the liquid, in accordance with the requirements of classification societies.

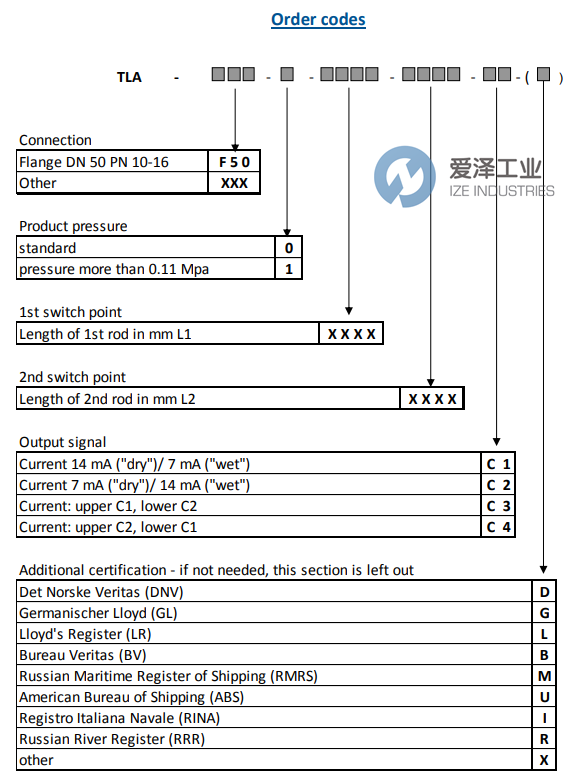

API液位开关TLA系列选型
API液位开关TLA系列其他常用型号：
API TLA-F50-0-0447-0924-C1-L-M24
API TLA-F50-0-0606-0411-C1-D-M24
API Tank Level Alarm NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于API液位开关TLA-F50-0-0447-0924-C1-L-M24的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for API products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
API液位开关TLA系列TLA-F50-0-0447-0924-C1-L-M24技术参数及选型
