HONEYWELL限位开关12CX200技术参数
Cat. Listing | 12CX200 |
Housing Material | Epoxy-coated aluminum |
Cover Size | Short |
Switch Action | Maintained |
Basic Switch Type, Quantity, Circuitry | BA (2), SPDT each |
Electrical Rating | B (20 A) |
Operating Torque Nm [In-lb] | 0,5 Nm [4.42 in-lb] |
Comments | Cam provides approximately 30° actuation in 360° rotation for each basic switch |
HONEYWELL限位开关CX系列介绍
霍尼韦尔 MICRO SWITCH CX 开关专为危险环境下的户外使用而设计。 这些外壳的构造可以承受内部爆炸的压力。 火焰路径将爆炸气体冷却到低于周围气体安全工作温度的温度。
特征
• 经过 NEMA 7 和 9 爆炸性环境适用部分认证
• 部分 CX 交换机已通过 ATEX、IEC Ex 和 INMETRO 规范认证，适用于全球应用
• NEMA 1,3, 4, 4X, 6, 6P 和 13 密封
• 防水防尘，适合户外使用
• 满足危险区域要求
• UL 认证，文件#E14274 1
• CSA 认证，文件#LR57324 1
• ATEX 证书 KEMA 01ATEX2111 X 1
• IEC Ex 证书 IEC Ex TSA 06.003X 1
• INMETRO 证书 TUV 14.05531
• 可选择坚固的铸铝或青铜外壳
• 青铜外壳具有耐腐蚀性能
• 现场可调节性允许无需工具即可现场调节预行程、超行程和执行顺序
Honeywell MICRO SWITCH CX switches are built especially for outdoor use in hazardous atmospheres. These enclosures are constructed to withstand the pressure of an internal explosion. Flame paths cool the exploded gases to a point less than the lowest safe operating temperature of the surrounding gas.
FEATURES
• Certified for applicable portions of NEMA 7 and 9 for explosiv environments
• Select CX switches are certified to ATEX, IEC Ex and INMETRO specifications for global applications
• NEMA 1,3, 4, 4X, 6, 6P and 13 sealing
• Watertight and dust-tight for outdoor use
• Meets hazardous area requirements
• UL Listed, file #E14274 1
• CSA Certified, file #LR57324 1
• ATEX certificate KEMA 01ATEX2111 X 1
• IEC Ex certificate IEC Ex TSA 06.003X 1
• INMETRO certificate TUV 14.05531
• Choice of rugged cast aluminum or bronze housings
• Bronze housing offered for corrosion resistance
• Field-adjustability allows pretravel, overtravel and actuating sequence to be field adjusted without tools

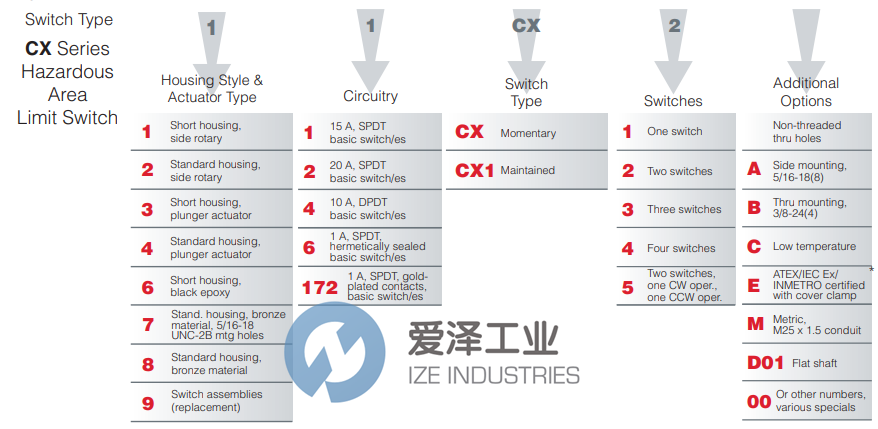

HONEYWELL限位开关CX系列选型
HONEYWELL限位开关CX系列其他常用型号：
HONEYWELL 1172CX2
HONEYWELL 11CX5C
HONEYWELL 11CX212
HONEYWELL 12CX12
HONEYWELL 12CX12-D01
HONEYWELL 12CX15-D01
HONEYWELL 12CX2
HONEYWELL 12CX2A
HONEYWELL 12CX2AE
HONEYWELL 12CX5E
HONEYWELL 12CX200
HONEYWELL 14CX1E
HONEYWELL 16CX1
HONEYWELL 16CX1E
HONEYWELL 16CX2
HONEYWELL 16CX2C
HONEYWELL 16CX12
HONEYWELL 21CX4
HONEYWELL 21CX12F
HONEYWELL 21CX14
HONEYWELL 22CX4
