REXROTH OIL CONTROL阀VEI-16-021-NA系列技术规格
Technical data | |
General | |
Weight | 0.35 kg (0.77 lbs) |
Installation orientation | Unrestricted |
Ambient temperature range | -30 to 90 °C (-22 to 194 °F) |
Hydraulic | |
Max. operating pressure | 350 bar (5000 psi) |
Flow range | 5 - 150 l/min (1 - 40 gpm) |
Fatigue cycle life | 1 million cycles at 350 bar |
Max. internal leakage: | 20 drops/min. for X= 02,06 |
Switching time | Closing ≤ 100 ms |
Fluid temperature range | -20 to 80 °C (-4 to 176 °F) |
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 20 to 380 mm2/s (cSt) | |
Installation torque | 130 - 150 Nm (96 - 111 ft-lbs) |
Recommended degree of fluid contamination | Nominal value max. 10 µm(NAS 8) ISO 4406 19/17/14 |
MTTFd | 150 years see RE 18350-51 |
Special cavity | 021-E see 18325-75 |
Seal kit for X=02,06 | code RG21E201052010 |
Seal kit for X=04,32 | code RG21E201053010 |
Seal kit coil and standard cap | code RG02Z0010000100 |
Seal kit coil and protective cap only for Y=B | code RG03Z0010000100 |
Seal kit coil and protective cap only for Y=C | code RG04Z0010000100 |

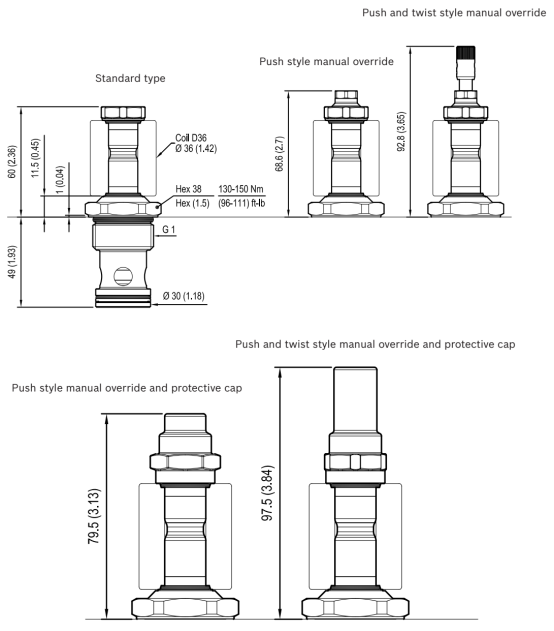

REXROTH OIL CONTROL阀VEI-16-021-NA系列技术尺寸

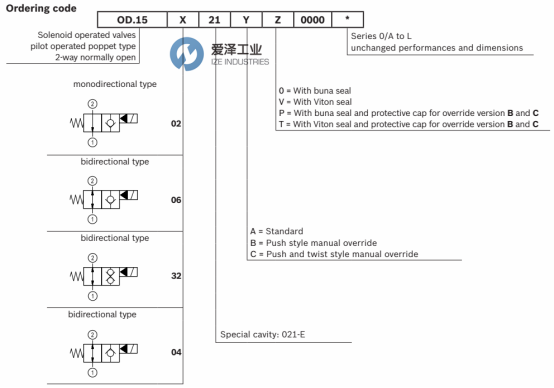

REXROTH OIL CONTROL阀VEI-16-021-NA系列选型
REXROTH OIL CONTROL阀VEI-16-021-NA系列其他常用型号：
REXROTH OIL CONTROL OD150221A000000 R930063874
REXROTH OIL CONTROL OD150621A000000 R930066964
REXROTH OIL CONTROL OD150621C000000 R930066969
REXROTH OIL CONTROL OD153221A000000 R930067155
REXROTH OIL CONTROL OD153221C000000 R930069397
REXROTH OIL CONTROL OD153221CP00000 R930068527
REXROTH OIL CONTROL OD150621B000000 R930068776
REXROTH OIL CONTROL OD150421A000000 R930066970
REXROTH OIL CONTROL OD150421C000000 R930069396
REXROTH OIL CONTROL valve NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向先进制造工业提供高端制造技术和设备。代理经营世界先进的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于REXROTH OIL CONTROL阀OD150621A000000 R930066964的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for REXROTH OIL CONTROL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.ize-industries.com.
REXROTH OIL CONTROL阀OD150621A000000 R930066964规格描述
