REXROTH OIL CONTROL阀VAA-B-SICN-ST-VF-150系列技术参数
Technical data | |
Operating pressure | up to 210 bar (3000 psi) |
Max. flow | 120 l/min. (32 gpm) |
Weight | 5.6 kg (12.3 psi) |
Manifold material | Aluminium |
Fluid | Mineral oil (HL, HLP) according DIN 51524 |
Fluid temperature range | -30 °C to 100 (-22 to 212 °F) |
Viscosity range | 10 to 500 mm2/s (cSt) |
Recommended degree of fluid contamination | Class 19/17/14 according to ISO 4406 |
Relief setting: | at least 1.3 times the highest expected load. |

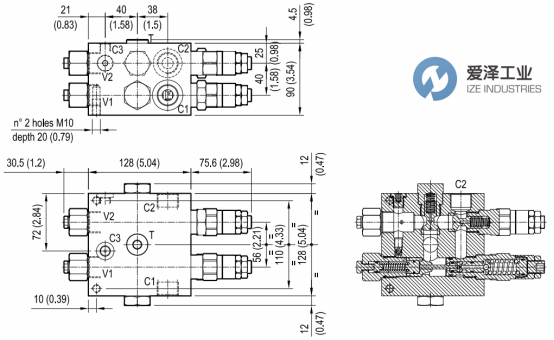

REXROTH OIL CONTROL阀VAA-B-SICN-ST-VF-150系列技术尺寸

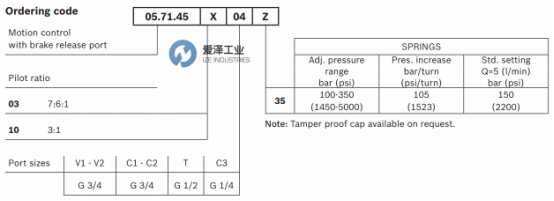

REXROTH OIL CONTROL阀VAA-B-SICN-ST-VF-150系列选型
REXROTH OIL CONTROL阀VAA-B-SICN-ST-VF-150系列其他常用型号：
REXROTH OIL CONTROL 05714503043500B R930006933
REXROTH OIL CONTROL 05714510043500B R930006791
REXROTH OIL CONTROL VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于REXROTH OIL CONTROL阀05714503043500B R930006933的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for REXROTH OIL CONTROL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
REXROTH OIL CONTROL阀05714503043500B R930006933技术参数及选型
