REXROTH-OIL CONTROL

请注意:照片可能并不是实际产品,具体请参阅标题和产品规格及所有细节描述。
产品品牌:
型号:OD150921A000000+D36
REXROTH OIL CONTROL阀OD150921A000000+D36
预估货期:
关  键  词:REXROTHOILCONTROLOD150921A000000+D36VEI-16-021-
相似产品:
是否有问题?联系我们工作人员
  邮件联系

REXROTH OIL CONTROL阀OD.15-X-21-Y-Z规格描述

Technical data


General


Weight

0.35 kg (0.77 lbs)

Installation orientation

Unrestricted

Ambient temperature range

-30 to 90 °C (-22 to 194 °F)

Hydraulic


Max. operating pressure

350 bar (5000 psi)

Flow range

5 - 150 l/min (1 - 40 gpm)

Fatigue cycle life

1 million cycles at 350 bar

Max. internal leakage:

20 drops/min. for X= 01,05

Switching time

Closing ≤ 100 ms
Opening ≤ 50 ms

Fluid temperature range

-20 to 80 °C (-4 to 176 °F)

Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 20 to 380 mm2/s (cSt)

Installation torque

130 - 150 Nm (96 - 111 ft-lbs)

Recommended degree of fluid contamination

Nominal value max. 10 µm(NAS 8) ISO 4406 19/17/14

MTTFd

150 years see RE 18350-51

Special cavity

021-E see 18325-75

Seal kit for X=01,05

code RG21E201052010
material no. R934003566

Seal kit for X=03,09,11,31

code RG21E201053010
material no.R934003567

Seal kit coil and standard cap

code RG02Z0010000100
material no.R930067869

Seal kit coil and protective cap only for Y=D

code RG03Z0010000100
material no.R930067870

Other technical data

See data sheet 18350-50

Electrical


Type of voltage

DC voltage

Coil type

D36

Supply voltage

See data sheet 18325-90

Voltage tolerance against ambient temperature

See characteristic curve

Power consumption

20 W

Type of protection

See data sheet 18325-90

Note: Coils must be ordered separately

爱泽工业(ize-industries)并不是本网站所列所有产品的授权代理商或经销商。 本网站使用的所有产品名称,商标,品牌等均属于各自品牌厂家所有。 本网站在产品或图片描述中,出现具有这些名称,商标,品牌等信息的产品仅用于识别目的,并非旨在表明任何与持有者的从属及授权关系。

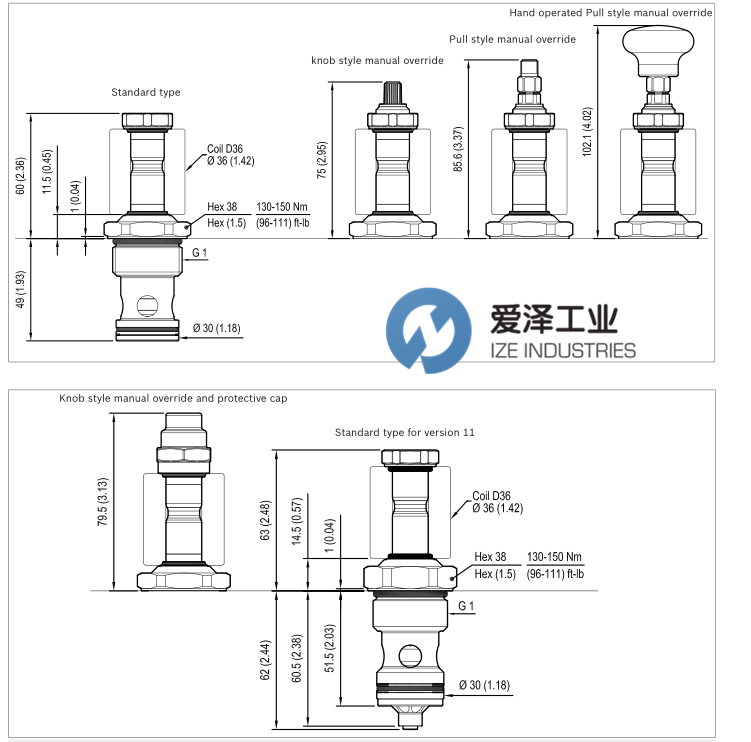

REXROTH OIL CONTROL阀OD.15-X-21-Y-Z系列尺寸图

OIL CONTROL阀OD150921A000000+D36 爱泽工业 izeindustries(1) (1).png

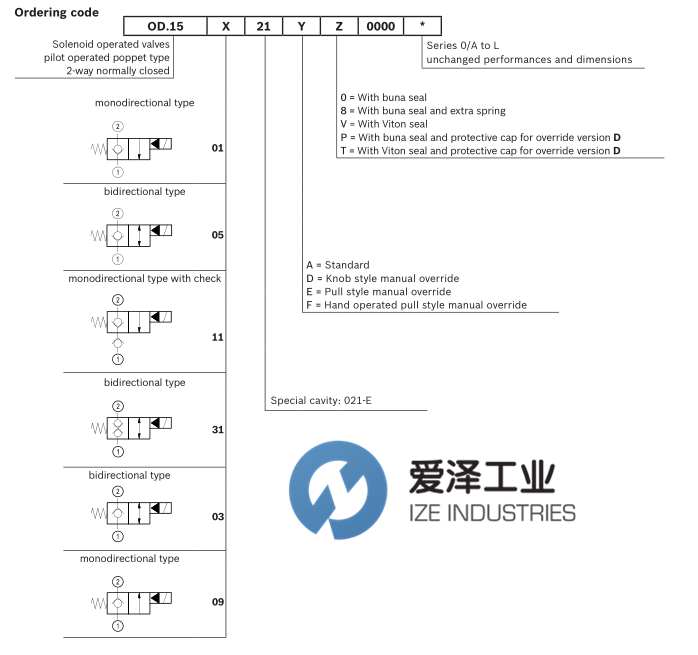

REXROTH OIL CONTROL阀OD.15-X-21-Y-Z选型

OIL CONTROL阀OD150921A000000+D36 爱泽工业 izeindustries(1) (2).png



REXROTH OIL CONTROL阀VEI-16-021-NC系列其他常用型号:

REXROTH OIL CONTROL OD150121A000000 R930064100

REXROTH OIL CONTROL OD150521A000000 R930064472

REXROTH OIL CONTROL OD150521A800000 R930065846

REXROTH OIL CONTROL OD150521A800000 R93006584

REXROTH OIL CONTROL OD151121A000000 R930068693

REXROTH OIL CONTROL OD151121D000000 R930065027

REXROTH OIL CONTROL OD153121A000000 R930068523

REXROTH OIL CONTROL OD153121A800000 R930069360

REXROTH OIL CONTROL OD153121D000000 R930068526

REXROTH OIL CONTROL OD153121D800000 R930069505

REXROTH OIL CONTROL OD150521D800000 R930070647

REXROTH OIL CONTROL OD150321A000000 R930070069

REXROTH OIL CONTROL OD150321D000000 R930069699

REXROTH OIL CONTROL OD150321D800000 R930070199

REXROTH OIL CONTROL OD150921A000000 R930068524

REXROTH OIL CONTROL OD150121A800000 R930068927
