C-FLEX轴承尺寸及性能选型介绍

C-FLEX轴承介绍

C-Flex 轴承或枢轴是圆柱形有限旋转轴承，具有较高的相对径向和轴向刚度，可提供低、中或高扭转弹簧刚度。它通常可用于 +/-30 的最大偏转角，但可根据要求提供各种配置。扭转刚度范围从 0.0003 Lb-In/度到 7.8023 Lb-In/度。它可以简单地用作振荡单元或极其敏感的关键元件。

交叉挠曲轴承的优点已在光机械应用中更换滚珠轴承枢轴方面得到充分证明。 C-Flex 轴承优于替代品的应用之一是质谱仪的扫描镜组件。在这里，两镜安装在一个组件上，激光束被扫描到样品上进行分析。 C-Flex 轴承的无润滑、无摩擦运动非常适用于此类应用，其中轴承润滑剂的释气可能会污染光学器件，并且由于持续受限旋转而导致的轴承磨损最终会导致运动误差。

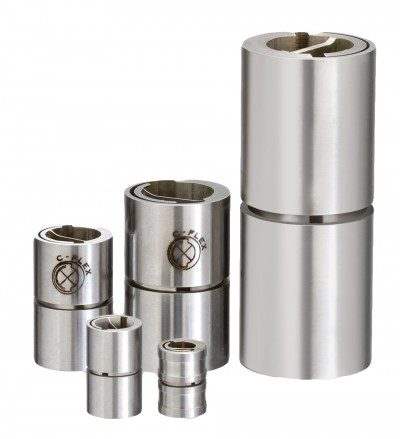

轴承本身由两个不锈钢套筒组成，由两个平面上的三个板簧固定到位。套筒之间没有接触，消除了摩擦，并且弹簧还提供枢轴动作，该动作本质上是自定心的，不需要润滑或维护。该轴承还提供一个额外的套筒，允许中央安装，提供两个枢轴臂（双端轴承，尺寸 AD 至 JD）。

The C-Flex bearing or pivot is a cylindrical, limited rotational bearing, with a high relative radial and axial stiffness which is available in low, medium, or high torsional spring rates. It is typically available for maximum deflection angles of +/-30, but various configurations are supplied upon request. Torsional stiffness ranges from .0003 Lb-In/degree to 7.8023 Lb-In/degree. It can be used simply as an oscillating unit or an extremely sensitive critical element.

The advantages of cross-flexure bearings has been well documented in connection with the replacing of ball bearing pivots in optomechanical applications. One such application in which the C-Flex bearing has outperformed alternatives is the scanning mirror assembly of a mass spectometer. Here two mirrors are mounted on an assembly and laser beams are scanned across samples to be analyzed. The lubrication free, frictionless movement of the C-Flex bearings is ideal in applications such as this where the outgassing from bearing lubricants could contaminate the optics, and bearing wear due to continuous limited rotation would eventually result in movement errors.

The bearing itself consists of two stainless steel sleeves held in position by three leaf springs on two planes. There is no contact between the sleeves eliminating friction, and the springs also provide the pivotal action which is inherently self centering and requires no lubrication or maintenance. The bearing is also available with an additional sleeve allowing for central mounting providing two pivotal arms (the double end bearing, sizes AD to JD).

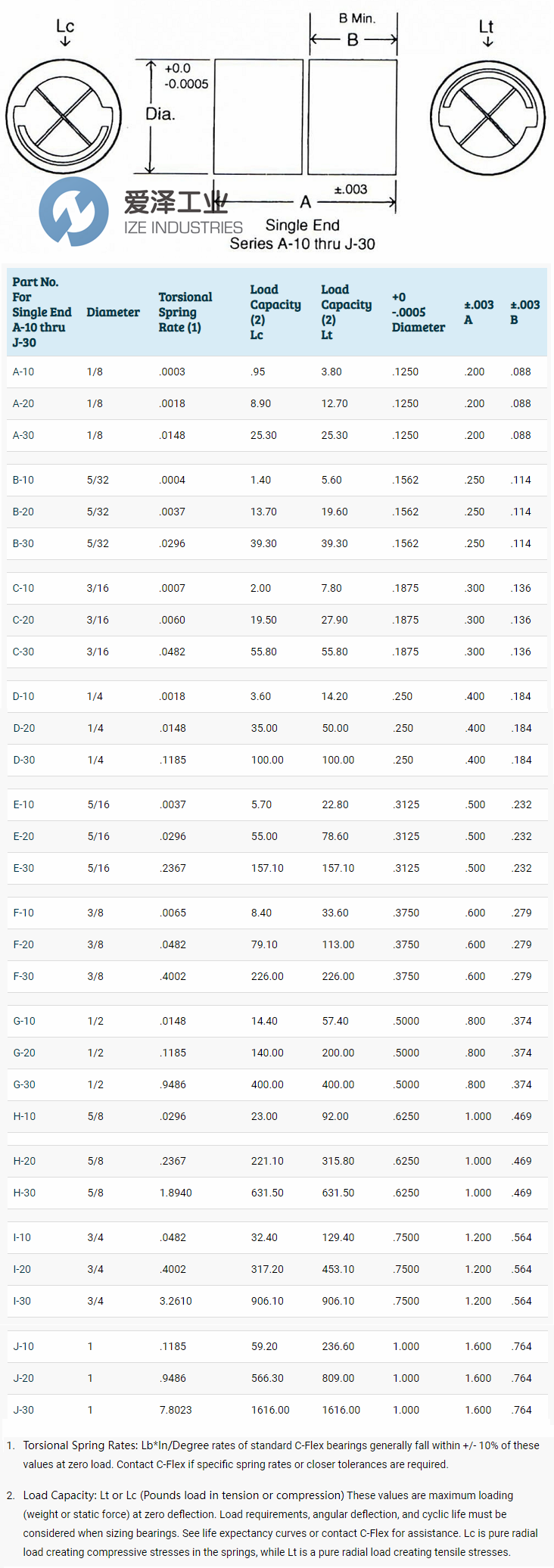

C-FLEX单端轴承选型

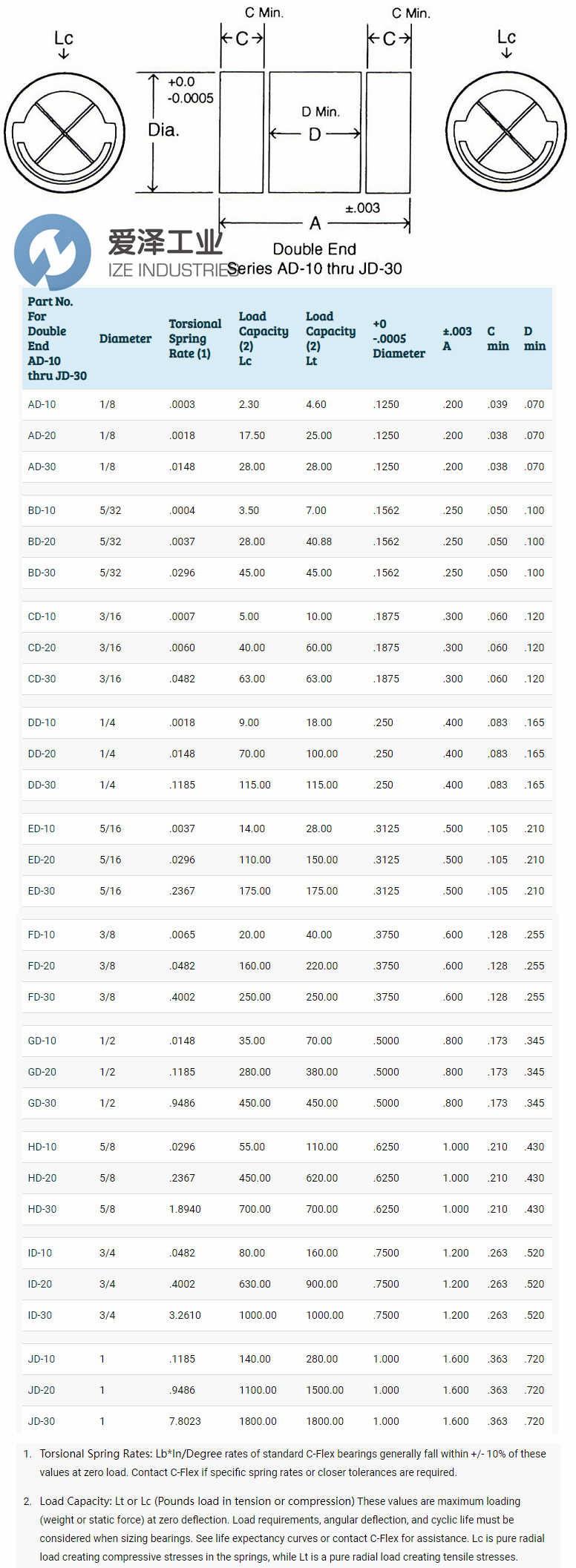

C-FLEX双端轴承选型

C-FLEX轴承常用型号：

C-FLEX A-10

C-FLEX A-20

C-FLEX A-30

C-FLEX B-10

C-FLEX B-20

C-FLEX B-30

C-FLEX C-10

C-FLEX C-20

C-FLEX C-30

C-FLEX D-10

C-FLEX D-20

C-FLEX D-30

C-FLEX E-10

C-FLEX E-20

C-FLEX E-30

C-FLEX F-10

C-FLEX F-20

C-FLEX F-30

C-FLEX G-10

C-FLEX G-20

C-FLEX G-30

C-FLEX H-10

C-FLEX H-20

C-FLEX H-30

C-FLEX I-10

C-FLEX I-20

C-FLEX I-30

C-FLEX J-10

C-FLEX J-20

C-FLEX J-30

C-FLEX AD-10

C-FLEX AD-20

C-FLEX AD-30

C-FLEX BD-10

C-FLEX BD-20

C-FLEX BD-30

C-FLEX CD-10

C-FLEX CD-20

C-FLEX CD-30

C-FLEX DD-10

C-FLEX DD-20

C-FLEX DD-30

C-FLEX ED-10

C-FLEX ED-20

C-FLEX ED-30

C-FLEX FD-10

C-FLEX FD-20

C-FLEX FD-30

C-FLEX GD-10

C-FLEX GD-20

C-FLEX GD-30

C-FLEX HD-10

C-FLEX HD-20

C-FLEX HD-30

C-FLEX ID-10

C-FLEX ID-20

C-FLEX ID-30

C-FLEX JD-10

C-FLEX JD-20

C-FLEX JD-30

如果您有任何关于产品的相关技术咨询或者需要C-FLEX的相关技术资料与文档，请随时致电爱泽工业（021-3100 6702），或者访问网站www.ize-industries.com,我们将尽全力解决您的问题。

If you have any question for C-FLEX，

please feel free to dial 0086-21-3100 6702 or browse our website: www.ize-industries.com.
