CIRCLE VALVE止回阀产品介绍

200 系列止回阀 0 至 3000 psig (438)

200 Series Check Valves 0 to 3000 psig (438)

特点和优点

• 快速开启/正向关闭

提供广泛的适应性

• 大流量

专利密封原理可在所有压力条件下实现完全防漏关闭

• 零泄漏

紧凑、易于安装。高效的直列活塞减小了尺寸和重量

• 浮动 O 形圈

流线型阀芯和全端口提供最小限制。

Features & Benefits

• Quick opening/positive closing

Provides a wide range of adaptability

• Large flow capacity

The patented sealing principle effects complete leakproof closing under all pressure conditions

• Zero leakage

Compact, easy installation. Efficient inline piston reduces size and weight

• Floating o-ring

The streamlined poppet and full ports offer minimum restrictions.

H200 系列高压止回阀 0 至 6000 psig (96)

H200 Series High Pressure Check Valves 0 to 6000 psig (96)

特点和优点

• 快速开启/正向关闭

提供广泛的适应性

• 大流量

专利密封原理可在所有压力条件下实现完全防漏关闭

• 零泄漏

紧凑、易于安装。高效的直列活塞减小了尺寸和重量

• 浮动 O 形圈

流线型阀芯和全端口提供最小限制。

Features & Benefits

• Quick opening/positive closing

Provides a wide range of adaptability

• Large flow capacity

The patented sealing principle effects complete leakproof closing under all pressure conditions

• Zero leakage

Compact, easy installation. Efficient inline piston reduces size and weight

• Floating o-ring

The streamlined poppet and full ports offer minimum restrictions.

2200 系列止回阀 0 至 800 psig (140)

2200 Series Check Valves 0 to 800 psig (140)

特点

• 中等流量

• 一体式设计

• 弹性 O 形圈

优点

• 免维护

• 可靠

• 经济

Features

• Medium flow

• Single piece design

• Resilient O-ring

Benefits

• Maintenance free

• Dependable

• Economical

2300 系列止回阀 0 至 10000 psig (121)

2300 Series Check Valves 0 to 10000 psig (121)

特点

• 专为高压服务而设计

• 弹性 O 形圈

• 一体式设计

优点

• 不易受污染损坏

• 正常背压下零泄漏

• 自动补偿磨损

• 缓冲、安静关闭

Features

• Designed for high pressure service

• Resilient O-ring

• Single piece design

Benefits

• Less susceptible to contamination damage

• Zero leakage at normal back pressure

• Automatic compensation for wear

• Cushioned, quiet closing

C200 系列筒式止回阀 0 至 5000 psig (64)

C200 Series Cartridge Check Valve 0 to 5000 psig (64)

特点

• 大流量容量

• 紧凑设计

• 浮动 O 形圈

优点

• 免维护流量

• 易于安装

• 零泄漏

• 安静关闭

• 自动补偿磨损

Features

• Large flow capacity

• Compact design

• Floating O-Ring

Benefits

• Maintenance free flow

• Easy installation

• Zero leak

• Quiet closing

• Automatic compensation for wear

C2900 系列筒式止回阀 0 至 3000 psig (60)

C2900 Series Cartridge Check Valve 0 to 3000 psig (60)

特点

• 紧凑且易于安装

• 弧形阀瓣面

• 零泄漏 - 止回方向“气密”

优点

• 快速开启，正向关闭

• 全流量 - 弧形阀瓣面以最小的压降平稳转移流量

• 除了用于新设备外，它们还可以与许多筒式阀互换并用于替换它们

Features

• Compact & easily installed

• Curved poppet face

• Zero leakage - ”bubble-tight” in check direction

Benefits

• Quick opening, positive closing

• Full flow - curved poppet face diverts flow smoothly with minimum pressure drop

• In addition to being used in new equipment, they are interchangeable with and can be used to replace many cartridge valves

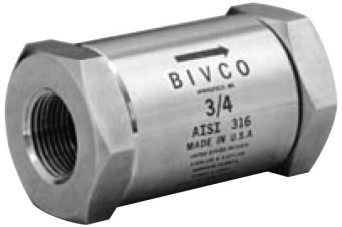

Bivco 止回阀 0 至 120 psig (77)

Bivco Check Valve 0 to 120 psig (77)

特点和优点

• 无泄漏

即使在低压差下也能提供气密密封。

• 低压降

大通道提供流动特性，压降低于竞争阀门。

• 不粘

自由浮动阀座和阀芯设计可防止因阀盘部件倾斜而导致的粘连。阀座和阀芯中使用的 PTFE 具有自润滑性和耐腐蚀性。

Features and Benefits

• No Leakage

Bubble-tight sealing is provided even at low-pressure differentials.

• Low Pressure Drop

Large passgeways provided flow chararcteristics with lower pressure drop than competing valves.

• Non-Sticking

The free-floating seat and poppet design prevents sticking due to canting of the disk member. PTFE used in seats and poppets is self lubricating and resistant to corrosion.

100 系列止回阀 0 至 25 psig (40)

100 Series Check Valves 0 to 25 psig (40)

特点和优点

• 低压

轻型止回阀，压力可达 25 psig。

• 超灵敏

独特的设计允许以最小压差流动。最大裂纹压力为 4 英寸 H2O。

• 正密封

阀芯上独特的刀刃位置紧密，即使在极低压力下也能提供零密封。

Features & Benefits

• Low Pressure

Lightweight check valve for pressures to 25 psig.

• Ultra-sensitve

Unique design allows flow with minimum pressure differential. Crak pressure is 4" H2O maximum.

• Positive Sealing

Unique knife-edge on the poppet positions snugly to provide zere sealing even with extremely low pressure.
