General

Weight

0.15 kg (0.33 lbs)

Installation   orientation

Unrestricted

Storage ambient   temperature range

-40 to 100 °C (-40 to   212 °F)

Operating ambient   temperature range

-30 to 90 °C (-22 to   194 °F)

Hydraulic

Max. operating   pressure

350 bar (5000 psi)

Flow range

0.5 - 40 l/min (0.1 -   11 gpm)

Fatigue cycle life

2 million cycles at   350 bar

150000 cycles at 420   bar

Max. internal leakage:

5 drops/min. for X=   01,05,07

20 drops/min. for X=   31,03,09

Switching time

Opening ≤ 50 ms

Closing ≤ 100 ms

Fluid temperature   range

-20 to 80 °C (-4 to   176 °F)

Fluids:

Mineral-based or   synthetics with lubricating properties at viscosities of 20 to 380 mm2/s   (cSt)

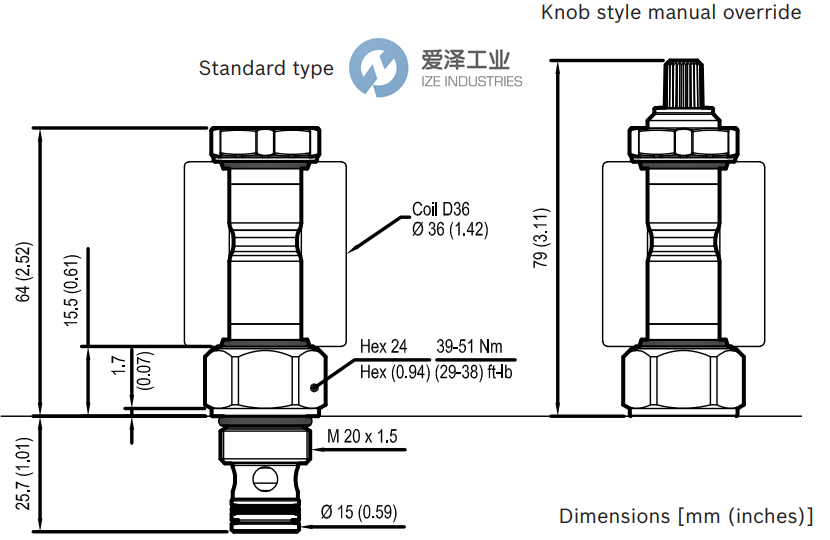

Installation torque

39 - 51 Nm (29 - 38   ft-lbs)

Recommended degree of   fluid contamination

Nominal value max. 10   µm (NAS 8) ISO 4406 19/17/14

Special cavity

040-E

Seal kit for X=01,05

code RG40E201052010
material no. R934003585

Seal kit for X=31

code RG40E201053010
material no. R934003587

Seal kit coil and   standard cap

code RG02Z0010000100
material no. R930067869

Seal kit coil and   protective cap only for Y=D

code RG03Z0010000100
material no. R930067870

Electrical

Type of voltage

DC voltage

Coil type

D36

Power consumption

20 W
